Garmin

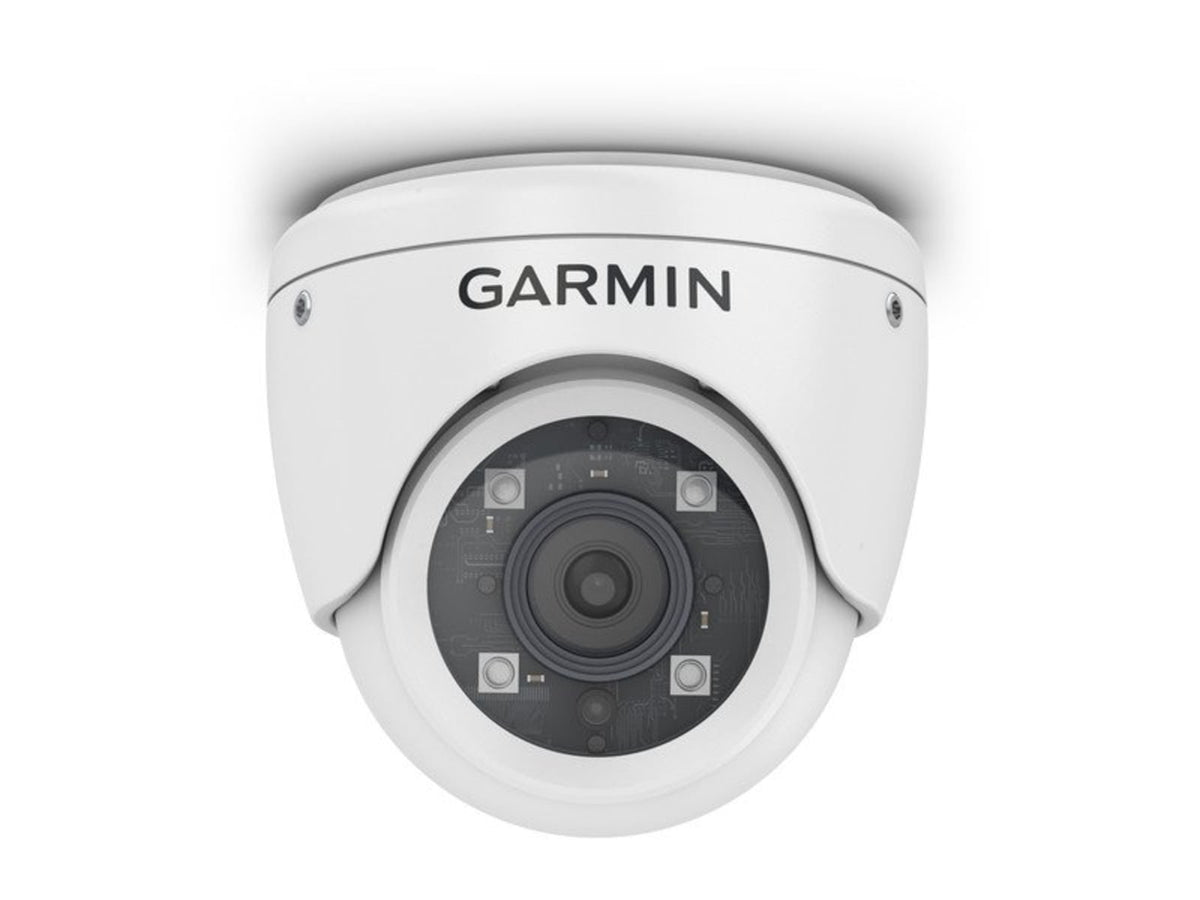

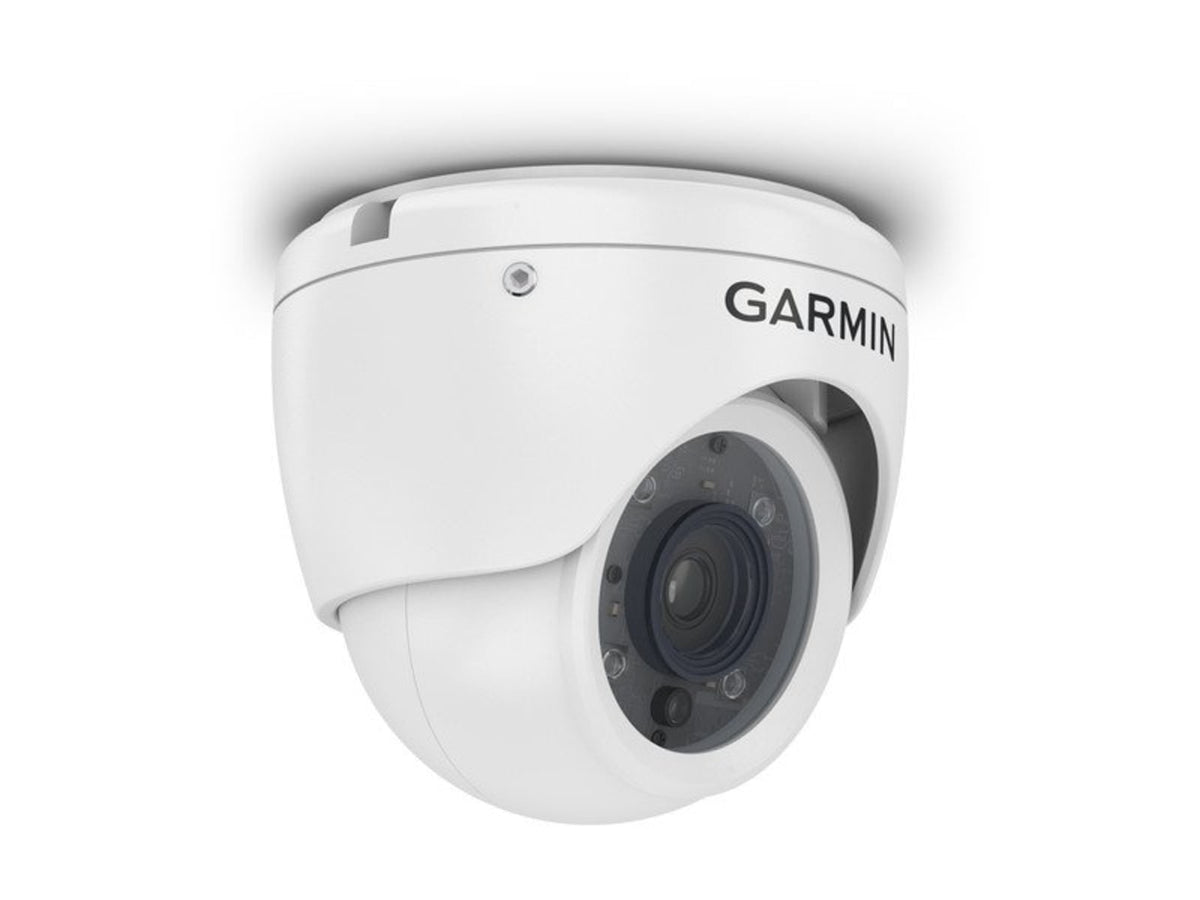

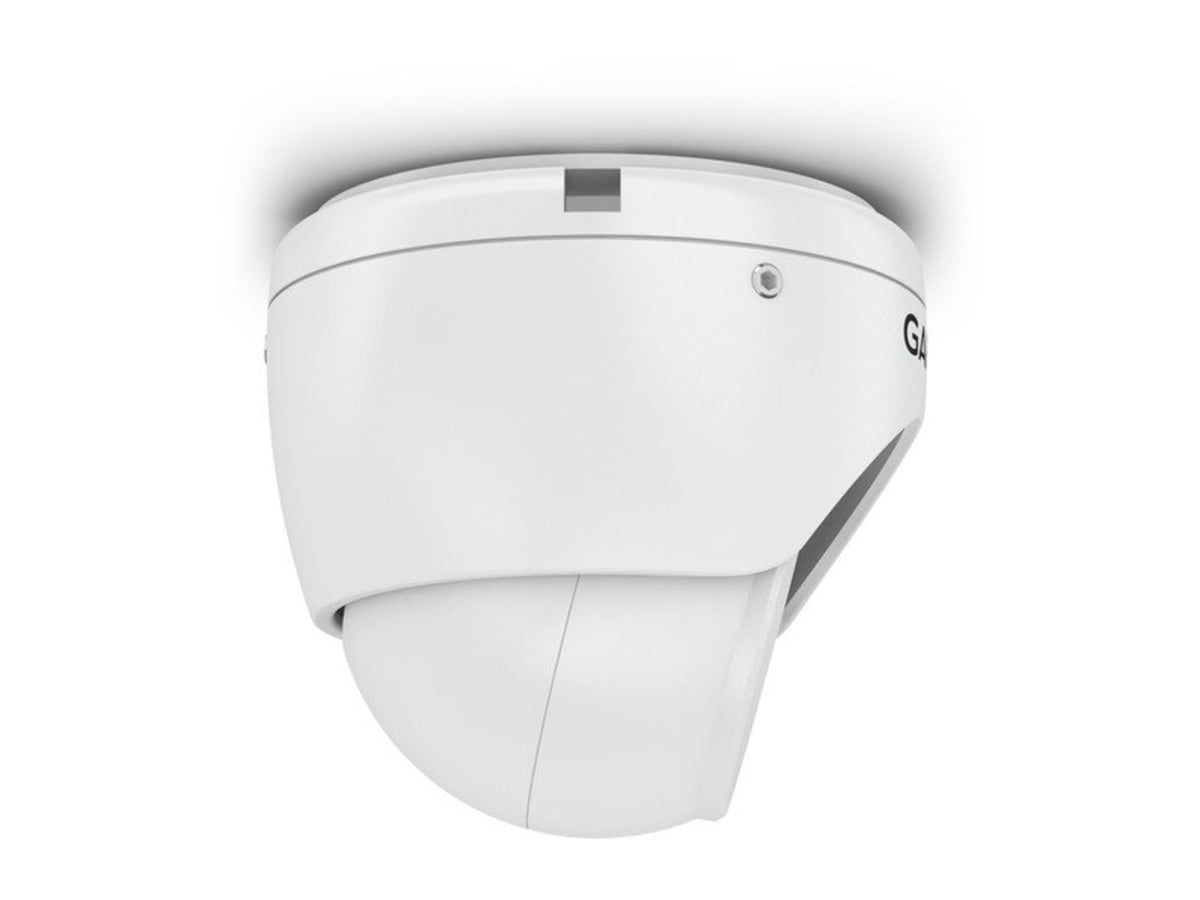

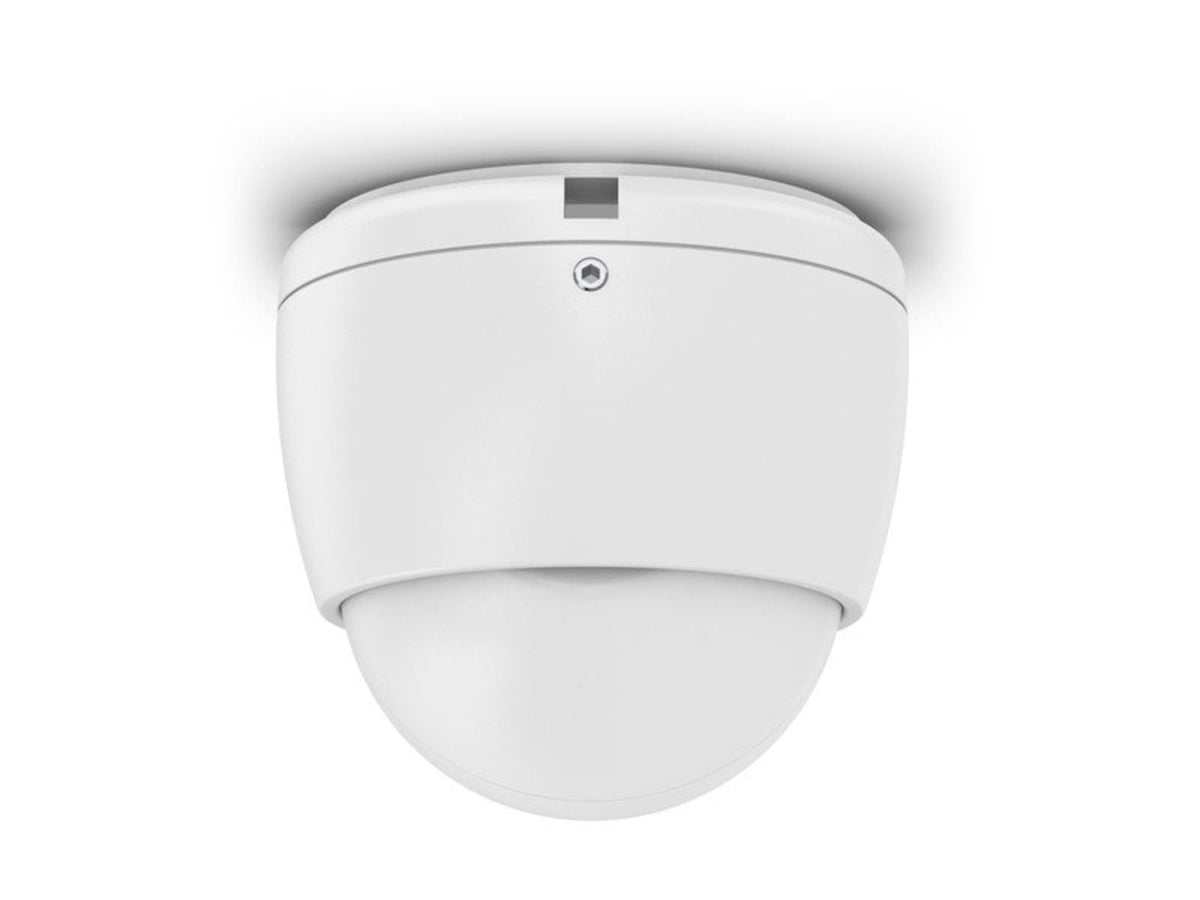

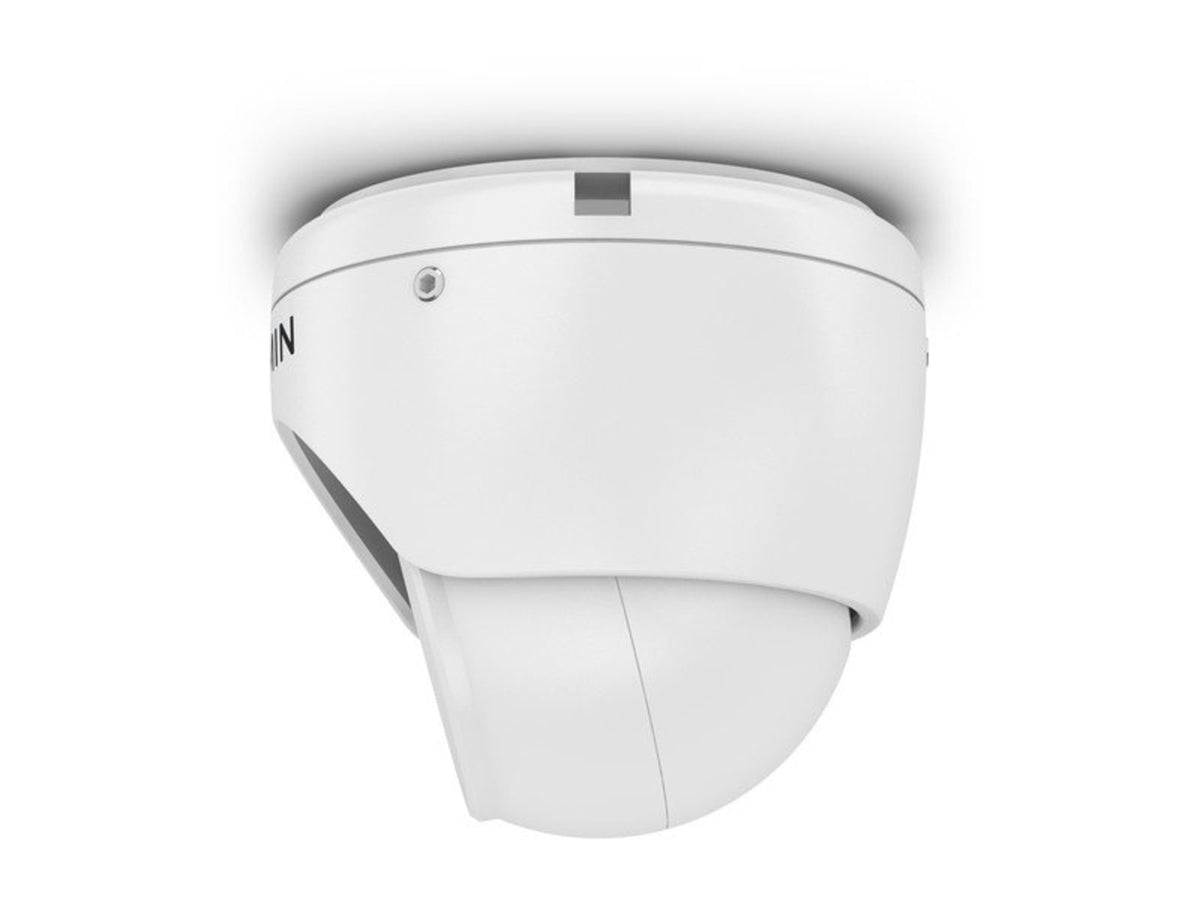

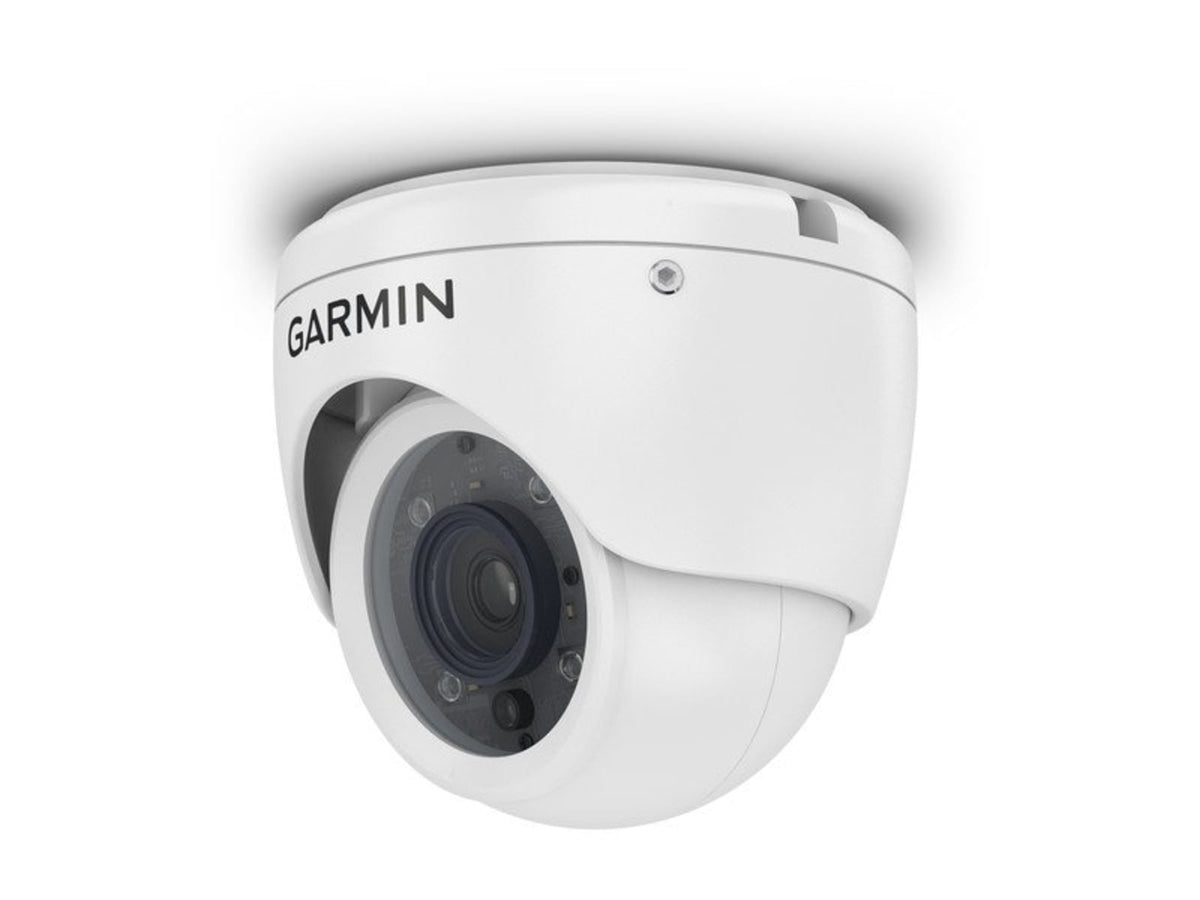

Garmin Accessory GC 200 Marine IP Camera 010-02164-00
Estimated delivery between October 28 and October 30.
Enjoy added security and awareness on your vessel
Use to monitor 1 or multiple areas above and below deck in clear, real-time HD video
HD resolution for excellent quality images, even in low light
Stream video from up to 5 cameras at a time on a single compatible Garmin chartplotter
Use reverse-image setting on compatible chartplotters to help back out of tight locations such as crowded marinas
Connect and share video across multiple compatible chartplotters on the Garmin Marine Network
Our GC 200 marine IP camera provides added security and awareness on your vessel. Use multiple cameras to monitor areas above and below deck in clear, real-time HD video. Connect up to 16 cameras on the Garmin Marine Network and share across multiple compatible chartplotters or stream video from up to 5 cameras at a time on a single chartplotter. Use the reverse-image setting on compatible chartplotters to help back out of tight locations such as crowded marinas.
Install Nearly Anywhere
GC 200 is easy to install, and its small size and discreet design will blend into the surroundings. Mount the marine IP camera in virtually any orientation, because its images can rotate 90/180/270 degrees. Its rugged, water-resistant case allows you to place it nearly anywhere you need a camera.
Specifications for Garmin GC 200, Marine IP Camera:
| Manufacturer: | Garmin |
| Color: | White |
| Resolution: | 1920x1080 pixels |
| Water Resistance Level: | IPX-7 |
| Operating Temperature: | -20 - 60 Celsius |
Features of Garmin GC 200, Marine IP Camera
- Power: Hardwired (10 VDC to 16 VDC or over Garmin marine network through the Garmin Power and Audio Module (010-12527-00) sold separate)
- Camera connection: Garmin Marine Network
- Images: Standard and reversed; rotated 90,180 or 270
- Night vision: Built-In IR LEDs
- Night vision distance: Up to 30 meters
- Viewing angle: 99 degrees horizontal/74 degrees vertical
- Image sensor: 2.0 megapixel 1/2.8 SONY STARVIS CMOS
- Scanning system: progressive scan
- White balance: auto
- Shutter speed: auto
- Resolution: Up to 1920 x 1080 pixels
- Video output: H.264 over GMN
- Operating temperature: -20C to 60C
- Water rating: IPX7
- Power consumption: Max 5 W with IR LEDs On
- Operating current @ 12 VDC: 210mA (IR Off)/370mA (IR ON)
Package Contents:
- Garmin GC 200, Marine IP Camera
- GC 200 marine IP camera
- 6 meter Garmin Marine Network cable (small connector)
- Garmin Marine Network adapter cable (small connector to large connector)
- Mounting hardware
- Documentation
