Raymarine

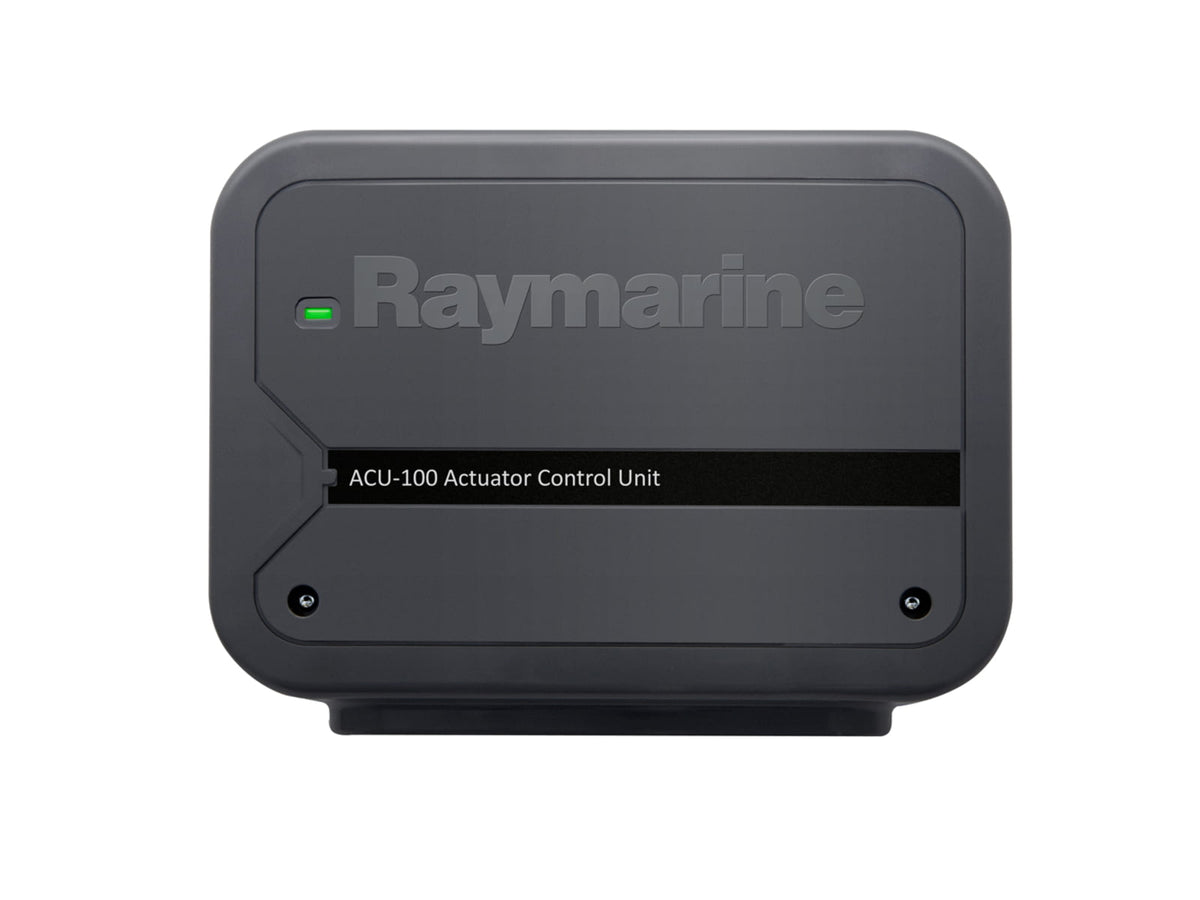

Raymarine Actuator Control Unit ACU-100 E70098
$659.99
Estimated delivery between October 28 and October 30.
Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.
Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection
Connections
Rudder reference sensor
Power
Drive motor
Ground
Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalkng Power Supply
No power supply to SeaTalkng
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
No power supply to SeaTalkng
Data Connections
SeaTalkng
Installation Environment
Operating Temperature: -20C to +55C (-4F to +131F)
Storage Temperature: -30C to +70C (-22F to +158F)
Relative Humidity: MAX 93%
Waterproof rating
Connector Panel: IPX2
Drive Electronics: IPX6
Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)
Conformance
Europe: 2004/108/EC
Australia and New Zealand: C-Tick Compliance Level 2
Specifications for Raymarine ACU-100 Actuator Control Unit:
| Manufacturer: | Raymarine |
| Color: | Black |
Package Contents:
- Raymarine ACU-100 Actuator Control Unit
