Raritan

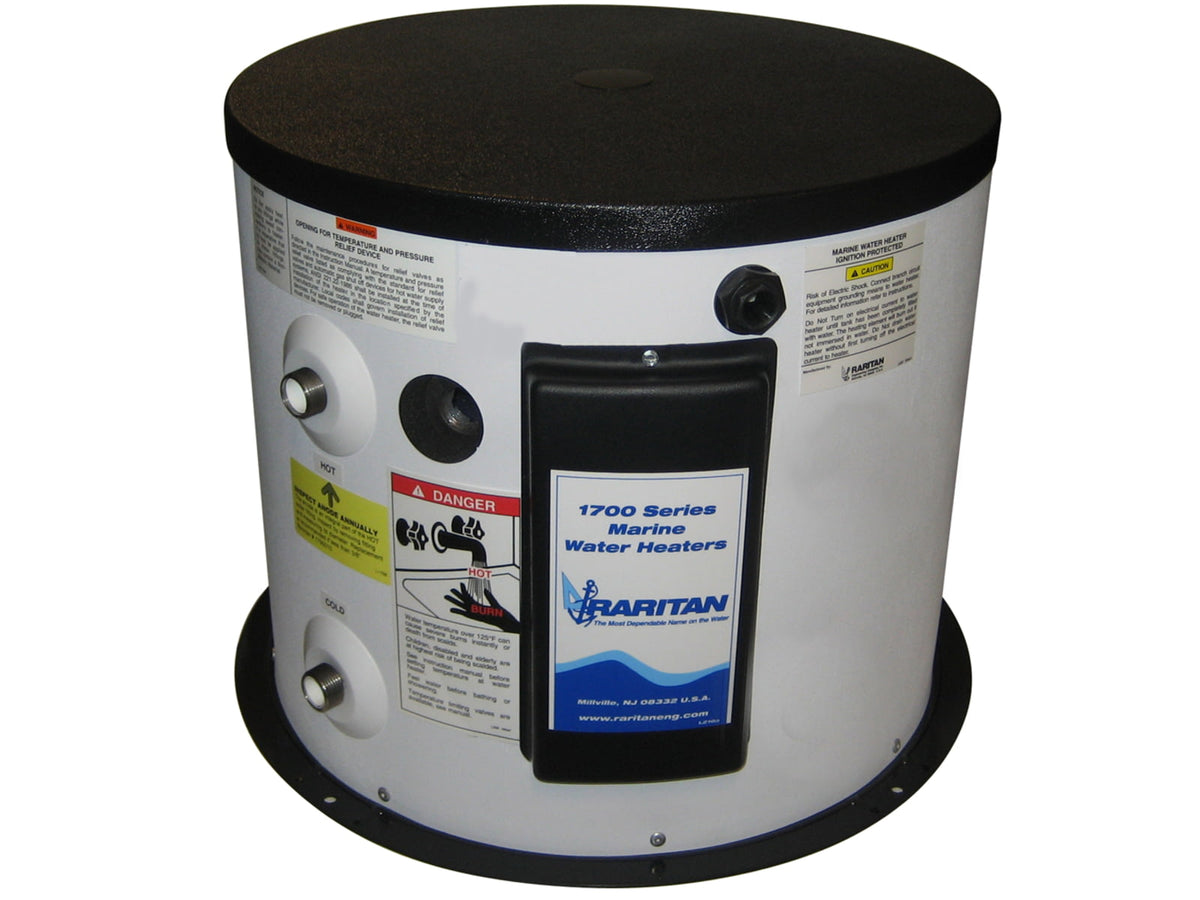

Raritan 12-Gallon Hot Water Heater w/o Heat Exchanger - 120V 171201
Estimated delivery between October 26 and October 28.
1700 Series Water Heater
120v
12 Gallon
W/O Engine Heat Exchanger
The "1700 Series" water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T& P ( temperature and pressure) relief valve. The cylindrical design of the tank enables it to withstand more pressure than a cube shaped tank.
Heat exchanger models can be connected to the engine cooling system. This provides the added convenience of hot water when underway or generator power is not available. The innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank providing hot water rapidly and efficiently.
Raritan's water heaters use an ignition protected thermostat. Although it is factory set to 120F it is adjustable from 110 to 160F and has a safety shut down limit of 190F. All models and sizes have the plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT (National Pipe Thread). Heat exchanger connections are 3/4" female NPT.
Benefits:
Simple installation - retrofits to most on-board pressure systems
Proven long-life design
Withstands the rigors of the marine environment
Glass-lined steel tank is more durable than stainless steel
Attractive polymer jacket resists corrosion from dampness
Ignition-protected adjustable thermostat
Round tanks are designed to withstand more pressure than square tanks
Glass-lined steel tank for long life and high efficiency
Environmentally friendly CFC-free foam insulation
Replaceable magnesium anode to protect tank and neutralize acids in the water
The tank is covered by a five-year Limited Warranty
Each unit is assembled by hand individually tested and backed by Raritan's two-year Limited Warranty and legendary technical support team
Specifications for Raritan 12-Gallon Hot Water Heater w/o Heat Exchanger:
| Manufacturer: | Raritan |
| Color: | Black |
| Voltage: | 120 volts |
Features of Raritan 12-Gallon Hot Water Heater w/o Heat Exchanger
- Gallons: 12
- Heat Exchanger: No
- Volts: 120v
Package Contents:
- Raritan 12-Gallon Hot Water Heater w/o Heat Exchanger
