Labconco Protector XVS Ventilation Stations Labconco 4864030

Labconco Protector XVS Ventilation Stations, Labconco is a reliable and dependable addition to the Labconco Laboratory Furniture and Biosafety Cabinets family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco Protector XVS Ventilation Stations, Labconco 4864030/ 82010-630 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

Protector* XVS Ventilation Stations, Labconco*

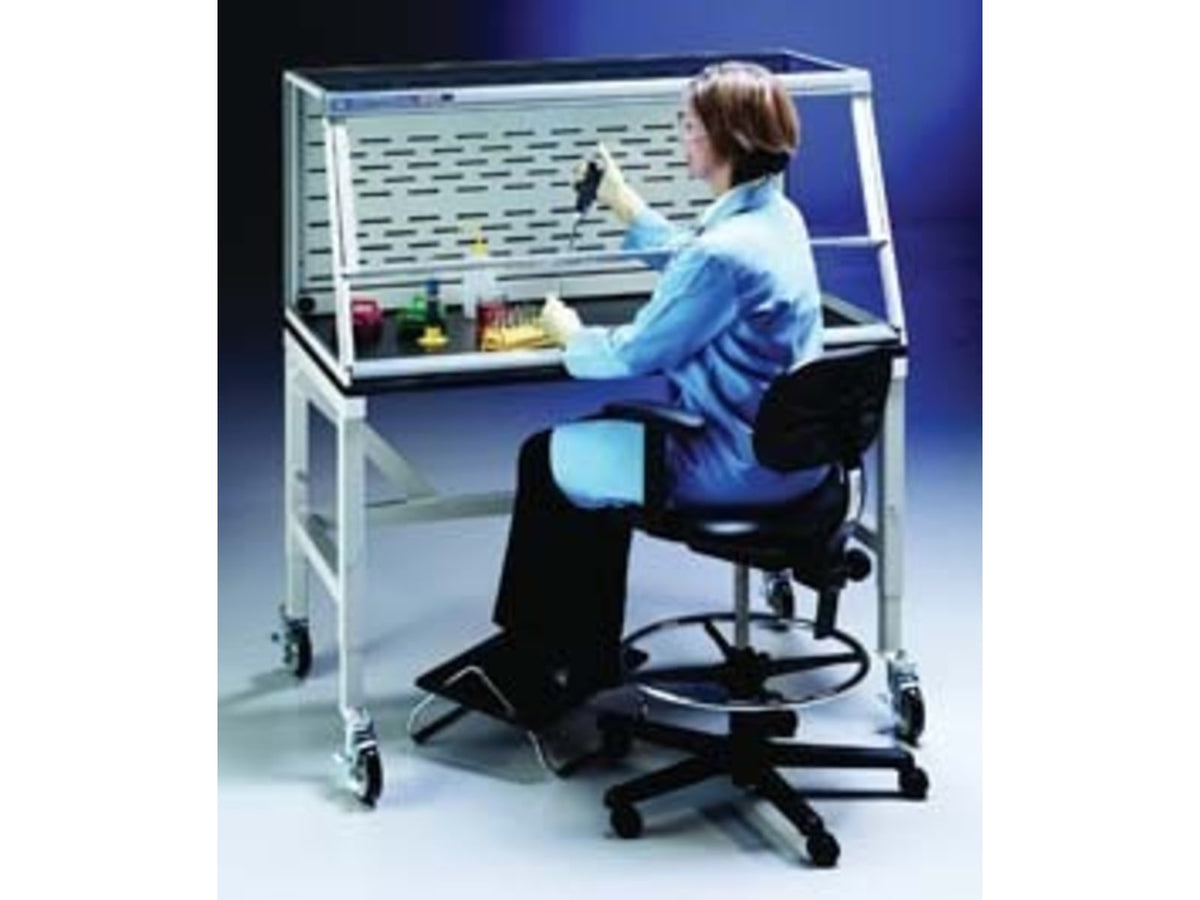

This ventilated work area is ideal as a weighing station, light-duty fume hood, science classroom workstation, solvent cleaning work bay, or for veterinary pathology and cytology. Even, inward airflow protects the operator and contains hazardous or noxious fumes, vapors, and fine powders.

The deep 58.4cm (23") interior easily accommodates a variety of equipment including large balances. Glacier white and gray, dry powder epoxy-coated enclosures have a sturdy aluminum frame with 0.5cm (3/16") thick tempered safety glass top and side walls. The angled and hinged sash with 0.6cm (1/4") thick tempered safety glass swings up for easy loading and cleaning. The sash opening on the 57.8cm (223/4") high models is 20.3cm (8"); on the 81.3cm (32") high models the opening is 25.4cm (10"). The sash pivots upward and locks to a loading height of 50.8cm (20") on the 57.8cm (223/4") high models, and 74.3cm (291/4") on the 81.3cm (32") high models.

The Clean-Sweep* airfoil allows air to sweep the work surface for maximum containment. Airflow openings pull air under the airfoil, creating a constant barrier of protection from contaminants. The upper containment sash foil bleeds air into the enclosure to direct contaminants away from the operator’s breathing zone. The perforated rear baffle promotes horizontal laminar airflow to maximize containment. Additional side-entry airfoils allow air to sweep across the interior glass surfaces to enhance containment. Two utility ports allow passage of tubing and cords. Enclosures feature 5.1x25.4cm (2x10") rectangular exhaust collars on the top and bottom for connection to ductwork or portable exhauster.

Base stands are made of durable 4.4cm (13/4") thick, tubular, glacier white epoxy-coated steel. The height of base stands is fully adjustable from 70–85cm (271/2–331/2") in 2.5cm (1") increments. Base stands come with either fixed leveling feet for use on uneven floor surfaces or with four 12.7cm (5") non-marking casters. The black, chemical-resistant, solid epoxy work surfaces are contoured to fit the dimensions of the enclosure and dished to contain spills.

Remote blowers 30153-980, 30153-982, and 82010-730 have a 1/4hp, totally enclosed, fan-cooled (TEFC) standard motor capable of overcoming external static pressure loss of 0.75in.H2O at 360cfm. Housing and wheel are made of corrosion-resistant, epoxy-coated steel. Blower inlet has an I.D. of 15.2cm (6"). Outlet dimensions are 10.8Wx18.7Lcm (41/4x73/8"). Applications involving high concentrations of solvents may require the explosion-proof blower (82010-730). The utility shelf kit includes three epoxy-coated steel shelves that can hold a printer, utensils, and other miscellaneous supplies. Shelves attach to the rear baffle perforations of the enclosure.

All systems conform to ASHRAE 110-1995 standards.

Ordering Information: Items designated as REDISHIP can be shipped within 48 hours of receiving your order. Enclosures must be connected to either a remote blower or a FilterMate* portable exhauster (see 82010-632 series) for proper exhaustion. For Guardian* airflow monitors, see 14222-630 series. Gray work surfaces are also available; contact your VWR representative for more information.

Specifications for Labconco Protector XVS Ventilation Stations, Labconco 4864030 :

(Please note that the description and stock photo may not correspond to the specific model listed above)

We offer only genuine Labconco products, authorized for sale in the U.S. and other markets, so you can be sure that you are buying authentic Laboratory Furniture and Biosafety Cabinets with a full manufacturer's warranty in addition to our own 100% Satisfaction Guarantee. We are your premier online distributor for Labconco Laboratory Furniture and Biosafety Cabinets. We are an authorized supplier to all federal and state government agencies, as well as to research and educational institutions, and can facilitate volume orders on many types of laboratory equipment, lab consumables, and other products to help fulfill your specific needs.
