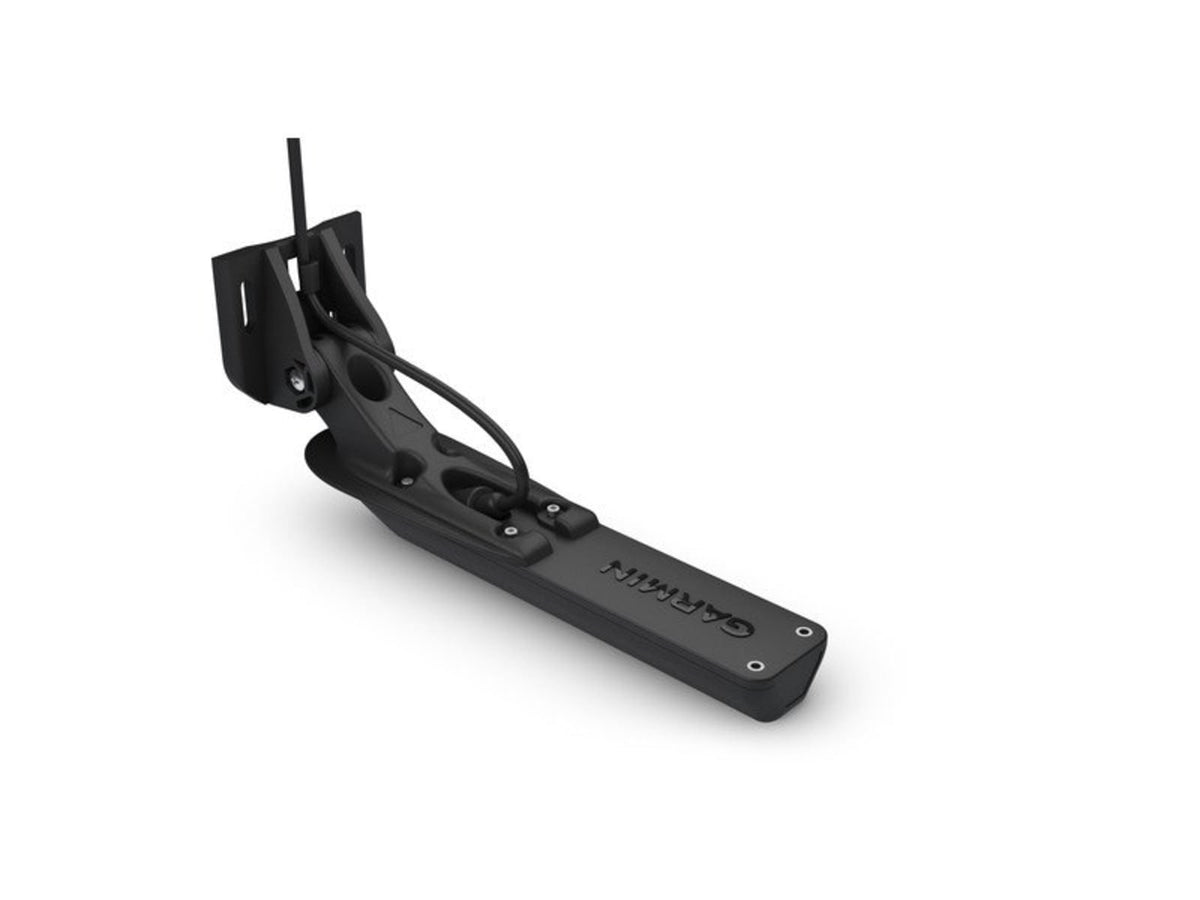

Garmin Accessory GT34UHD-TM xdcr 12pin Ultra High Def CV/SV Transom 010-12776-00
Estimated delivery between October 30 and November 01.
Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVuu and Ultra High-Definition SideVuu scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).
Ultra High-Definition ClearVuu Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVuu Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
Specifications for Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom:
| Manufacturer: | Garmin |
| Color: | Black |
| Additional Features: | 12 pin |
Features of Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom
- General
- Frequency:Ultra High-Definition ClearVuu: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVuu: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
- Power:500 W
- Beamwidth:ClearVuu: 0.74x46 @ 800 kHzSideVuu: 0.441x55 @ 1200 kHz
- Maximum depth:200' Ultra High-Definition ClearVuu 125' to each side Ultra High-Definition SideVuu, 250' total, at a maximum depth of 30'
- Depth/Speed/Temperature:Depth and Temperature
- Number of pins:12-pin
- Cable length:20 ft.
- Supported deadrise/Transom angles:0-70 degree transom
Package Contents:
- Garmin GT34UHD-TM, xdcr, 12pin, Ultra High Def CV/SV, Transom
