Garmin

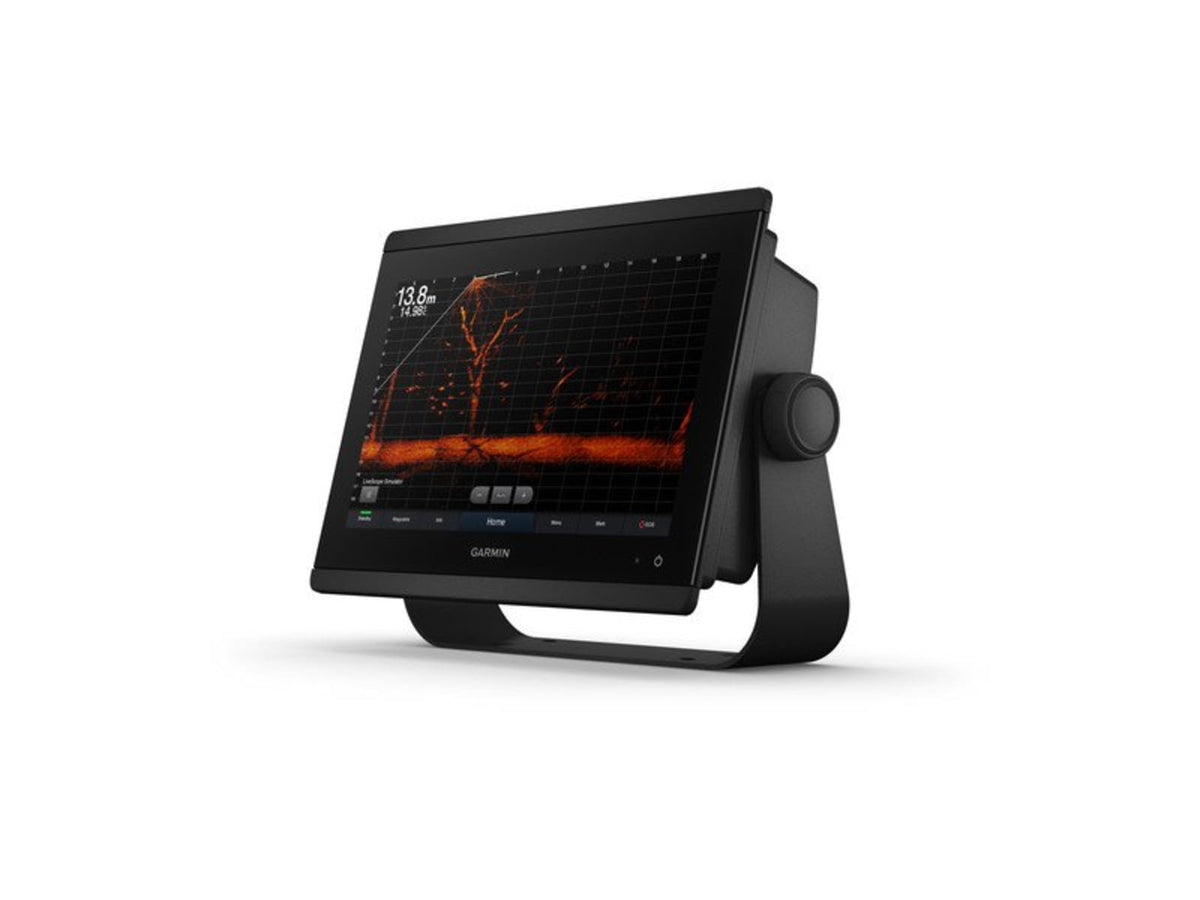

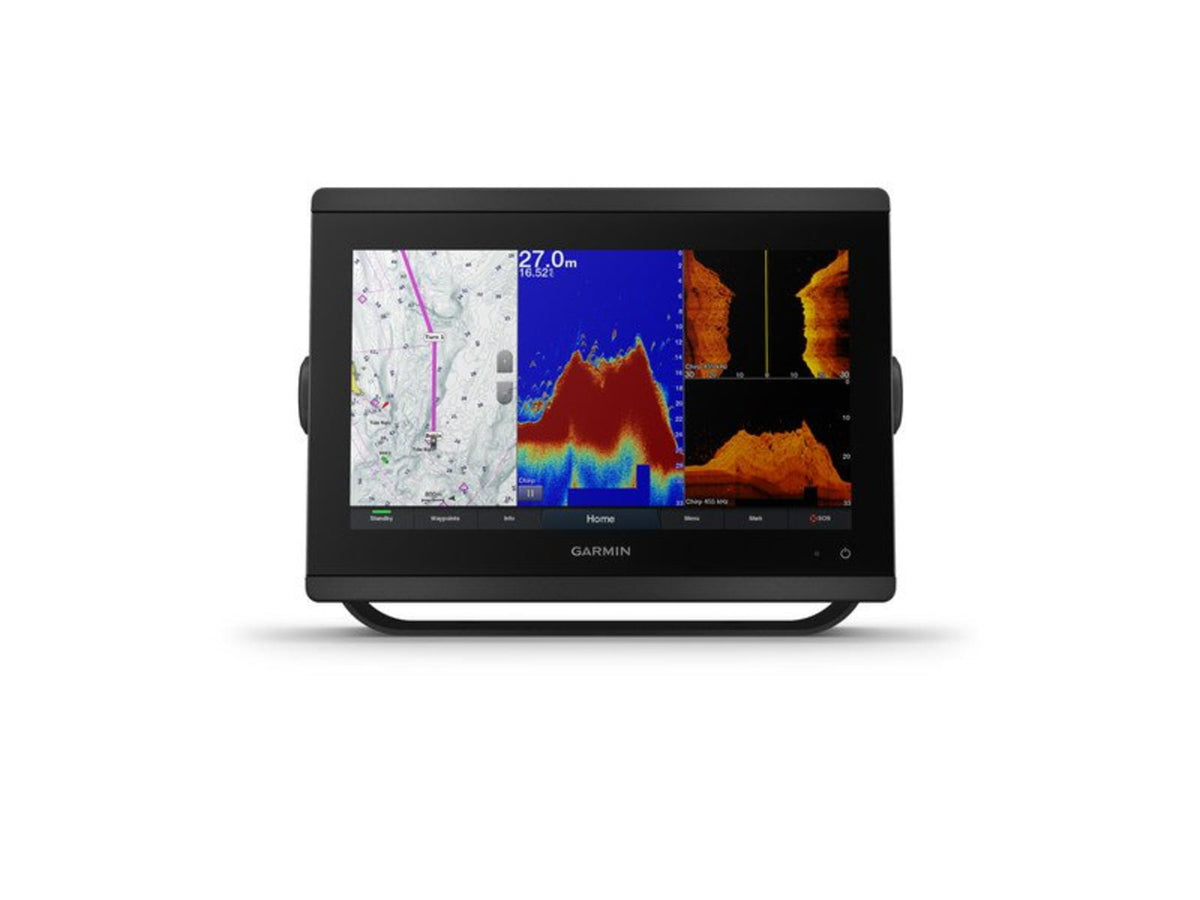

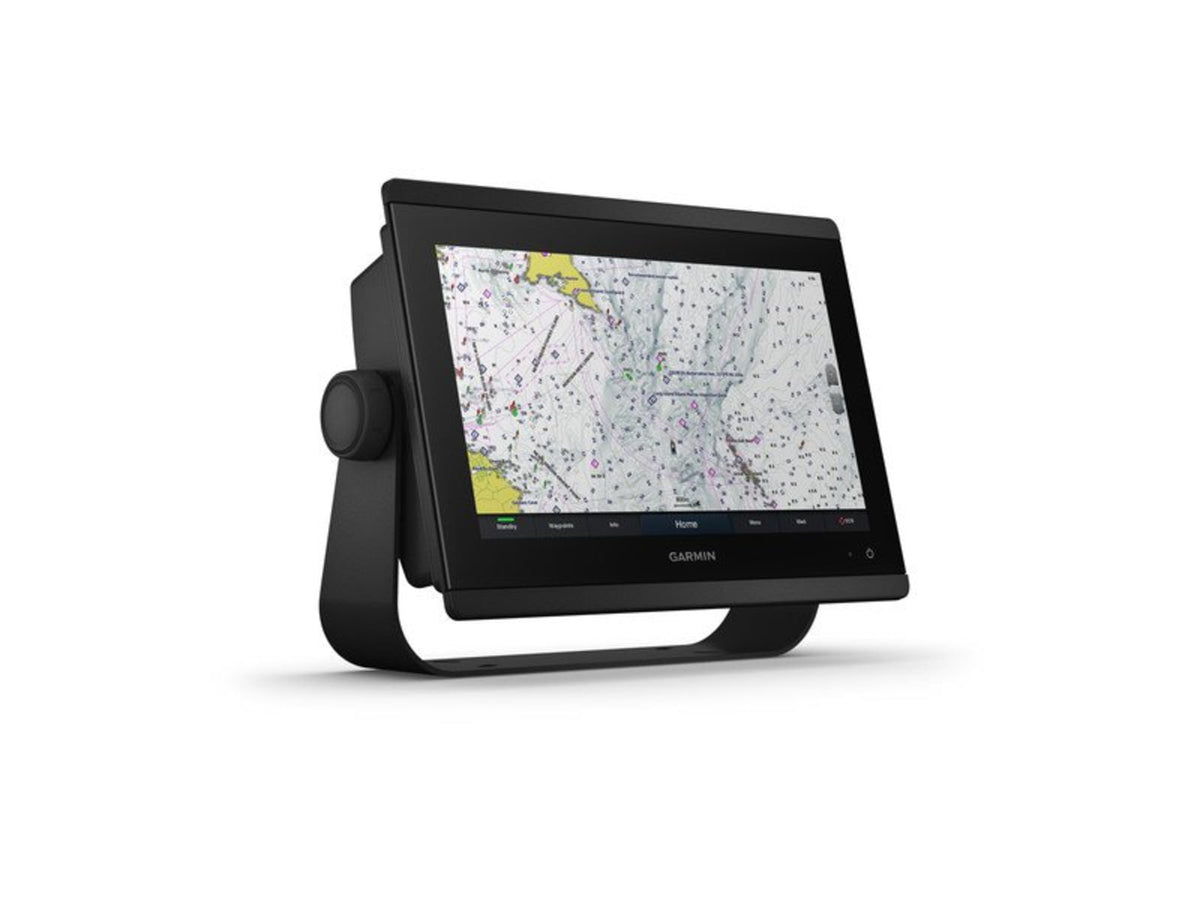

Garmin Accessory GPSMAP 8412xsv Worldwide 010-02092-02
$4,249.00
Estimated delivery between October 26 and October 28.
Chartplotter/Sonar Combo Is All-in-1 Solution
Color display with keypad interface and multifunction control knob
High-sensitivity internal 10 Hz GPS and GLONASS receiver
Built-in single channel CHIRP sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar and Panoptix support (transducers sold separately)
Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
Supports optional BlueChart g3 Vision premium charts
Experience an advanced all-in-1 solution with our GPSMAP keyed combo. It has built-in support for Garmin CHIRP sonar, CHIRP ClearVu and CHIRP SideVu. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Specifications for Garmin GPSMAP 8412xsv, Worldwide:
| Manufacturer: | Garmin |
| Display Resolution: | 1920x1200 pixels |
| Additional Features: | Worldwide Basemap, Sonar |
| Weight: | 6.2 lb |
| Water Resistance Level: | IPX-7 |
| Size: | 12 in |
| Color: | Black |
Features of Garmin GPSMAP 8412xsv, Worldwide
- General
- Physical dimensions:11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
- Display size:10.1" x 5.7" (25.7 cm x 14.5 cm)
- Display resolution:FHD; 1920 x 1080 pixels
- Display type:touchscreen IPS display (anti-glare finish)
- Weight:6.2 lbs (2.8 kg)
- Water rating:IPX7
- Polarized Support:
- J1939 Compatible:
- Power consumption:3.1 A
- Antenna:Internal or external over NMEA 2000
- Mounting options:Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
- Receiver:10 Hz GPS/GLONASS/Galileo
- Garmin Marine Network ports:2
- Maps & Memory
- Accepts data cards:2 microSD cards (on back)
- Waypoints:5,000
- Routes:100 (250 waypoints each)
- Track log:50,000 points; 50 saved tracks
Package Contents:
- Garmin GPSMAP 8412xsv, Worldwide
- GPSMAP 8412xsv
- Power cable
- NMEA 2000 drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
