Garmin Accessory GNX 130 Marine Instrument 10 inch display WW 010-01396-00
$1,699.00
Estimated delivery between October 28 and October 30.

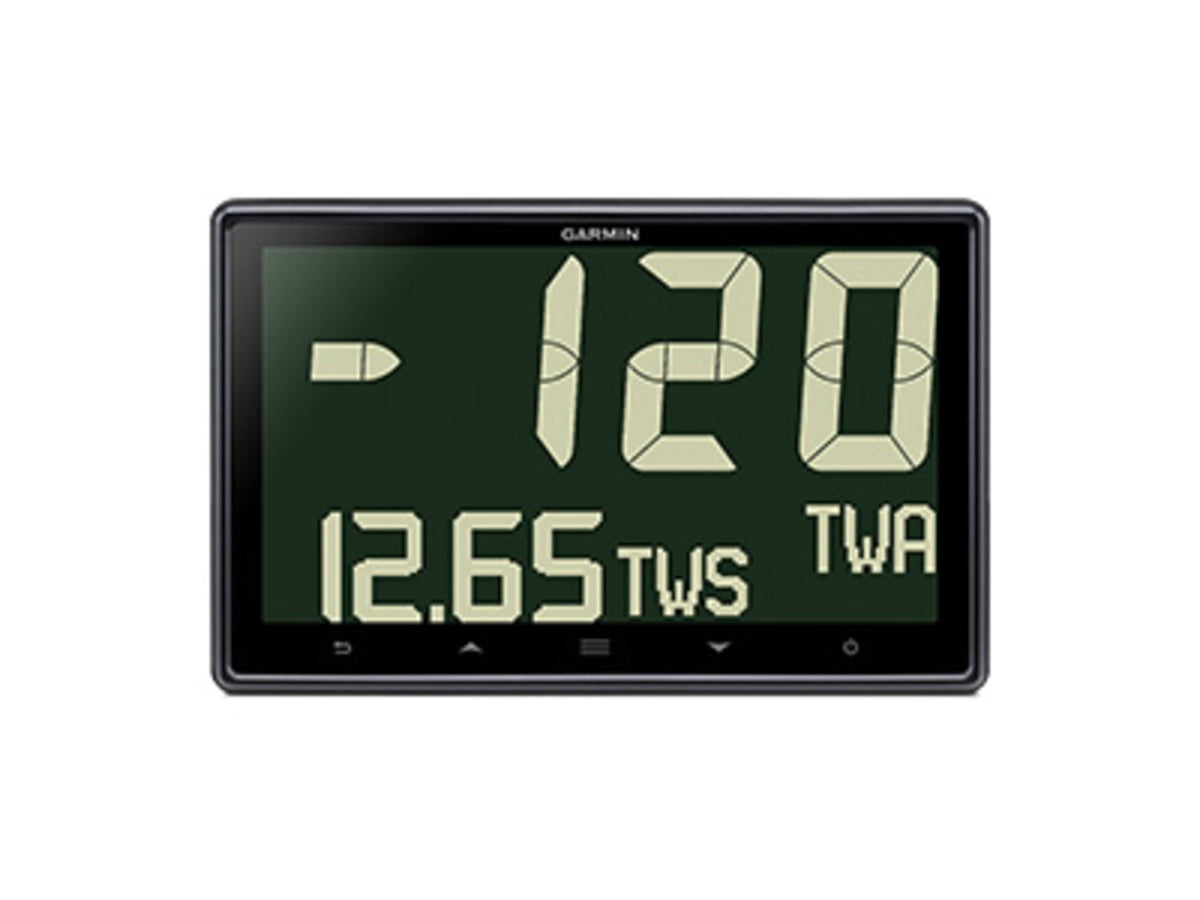

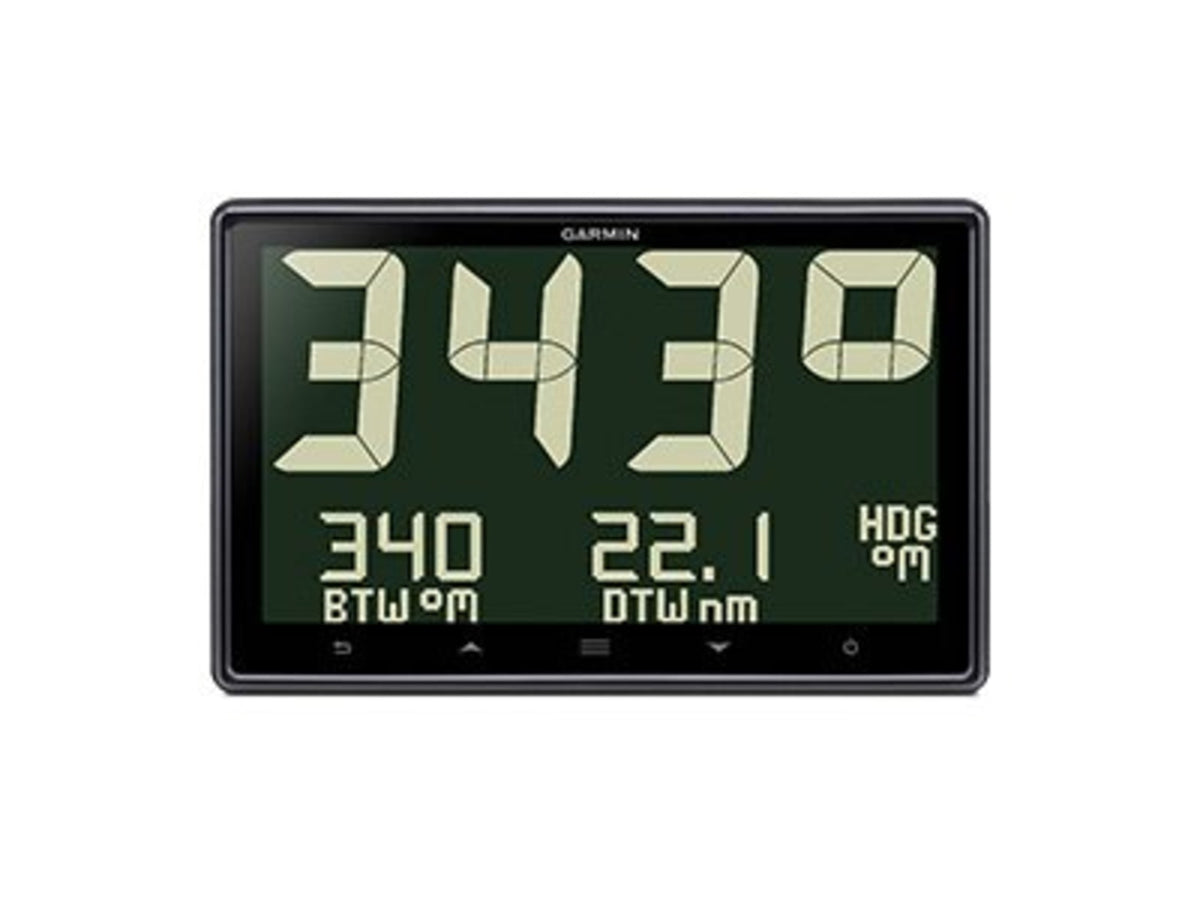

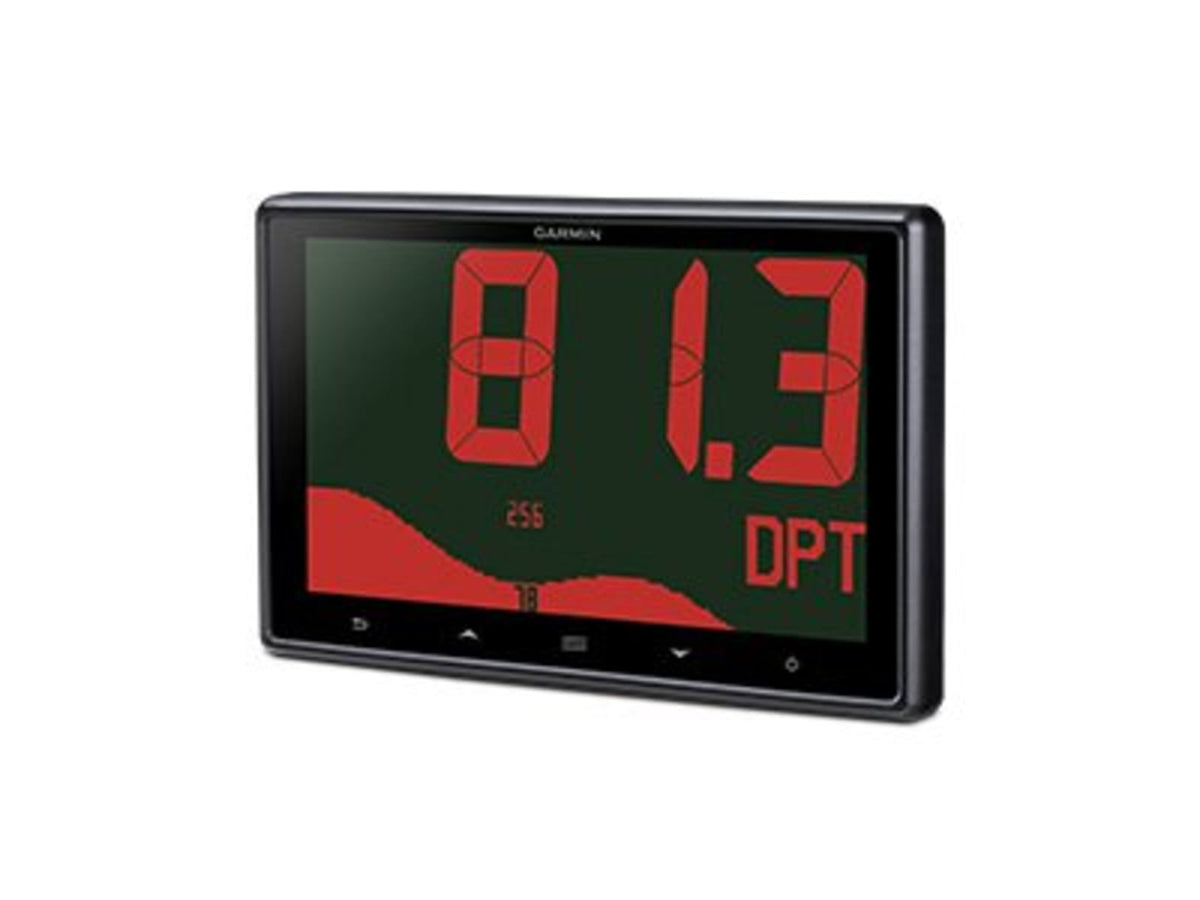

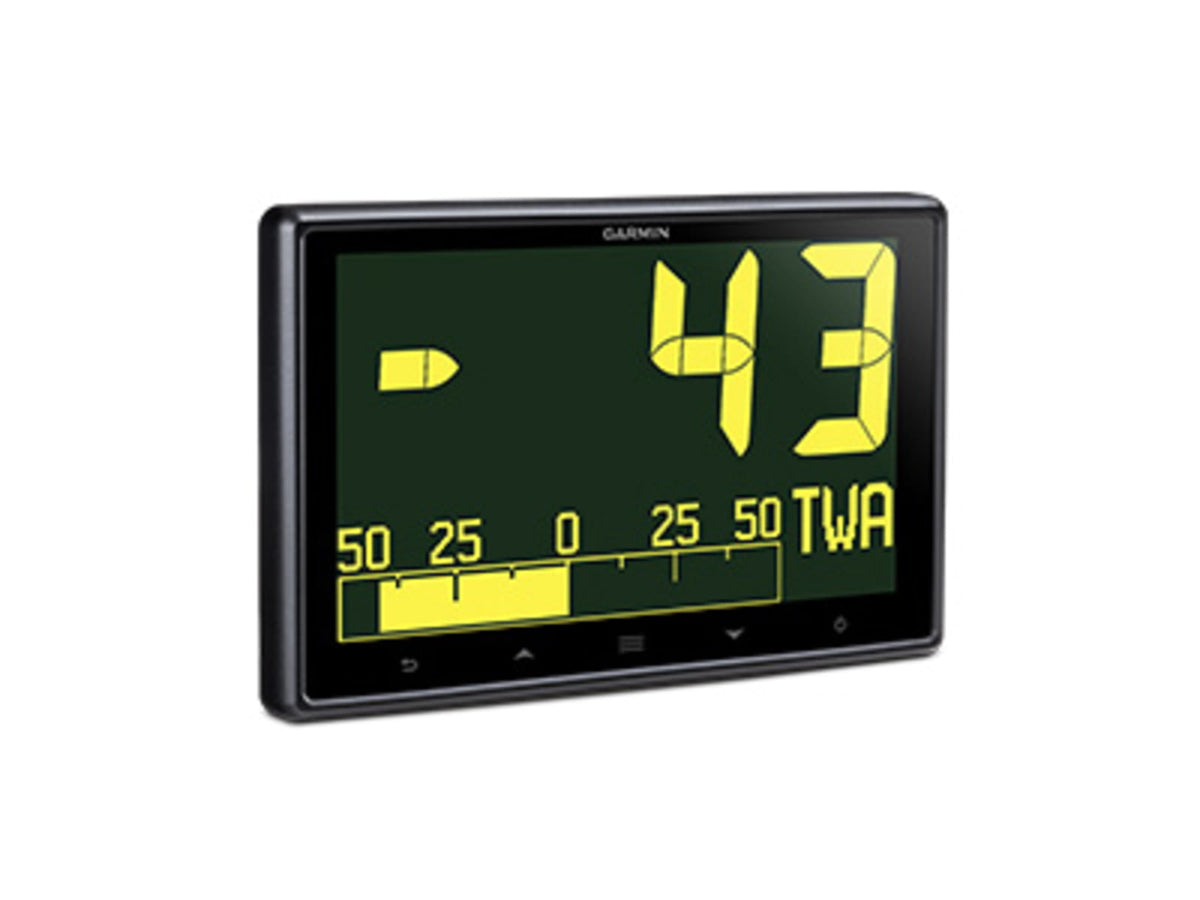

Easy-to-read With the Largest Digits in its Class
High-precision glass-bonded backlit LCD display avoids fogging
Bold 2.75-inch (70 mm) digits are the largest digits in class
Provides the data necessary to make confident decisions
Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices
Superior Readability
Enjoy superior readability in all conditions, day and night. Options for white or color 2.75-inch (70 mm) digits the largest in class allow you to adjust for most preferred visibility setting for any lighting condition. The GNX 130 provides a flush mount glass mast look, and its glass-bonded high-contrast monochrome LCD display avoids fogging. Low power consumption of 0.36 W daylight with no backlight and 0.4 W nighttime with mid-level backlight preserves your batteries.
Design Your Profile
Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Five display configurations are available: single, dual and triple function, plus Gauge and Graph modes, to display data for more than 50 important marine parameters for wind, sea and vessel conditions. Display data from Expedition software on the instrument using a Actisence NGT-1 N2K USB or GND 10 (not required). Adrena and SmartSkipper information can also be displayed using the GND 10.
Specifications for Garmin GNX 130, Marine Instrument, 10 inch display:
| Manufacturer: | Garmin |
| Color: | Black |
| Additional Features: | NMEA 0183 Compatible |
| Weight: | 28.9 oz |
| Size: | 9.8x6.02x75 in |
| Operating Temperature: | -15 - 70 Celsius |
| Water Resistance Level: | IPX-7 |
Features of Garmin GNX 130, Marine Instrument, 10 inch display
- General
- Physical dimensions:249 x 153 x 19 mm (9.8'' x 6.02'' x .75'')
- Display size:207 x 116 mm (8.15'' x 4.57'')
- Display type:Inverted LCD, monochrome
- Weight:820 g (28.9 oz)
- Water rating:IPX7
- Power consumption:0.36 W (day); 0.4 W (night)
- Mounting options:Flush
- Glass bonded display
- Temperature range:From 5 to 158F (from -15 to 70C)
- Instrument Features
- Auto-on
- User profiles
- Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)
Package Contents:
- Garmin GNX 130, Marine Instrument, 10 inch display
- GNX 130
- Trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000 T-connector
- NMEA 2000 drop cable
- Documentation
