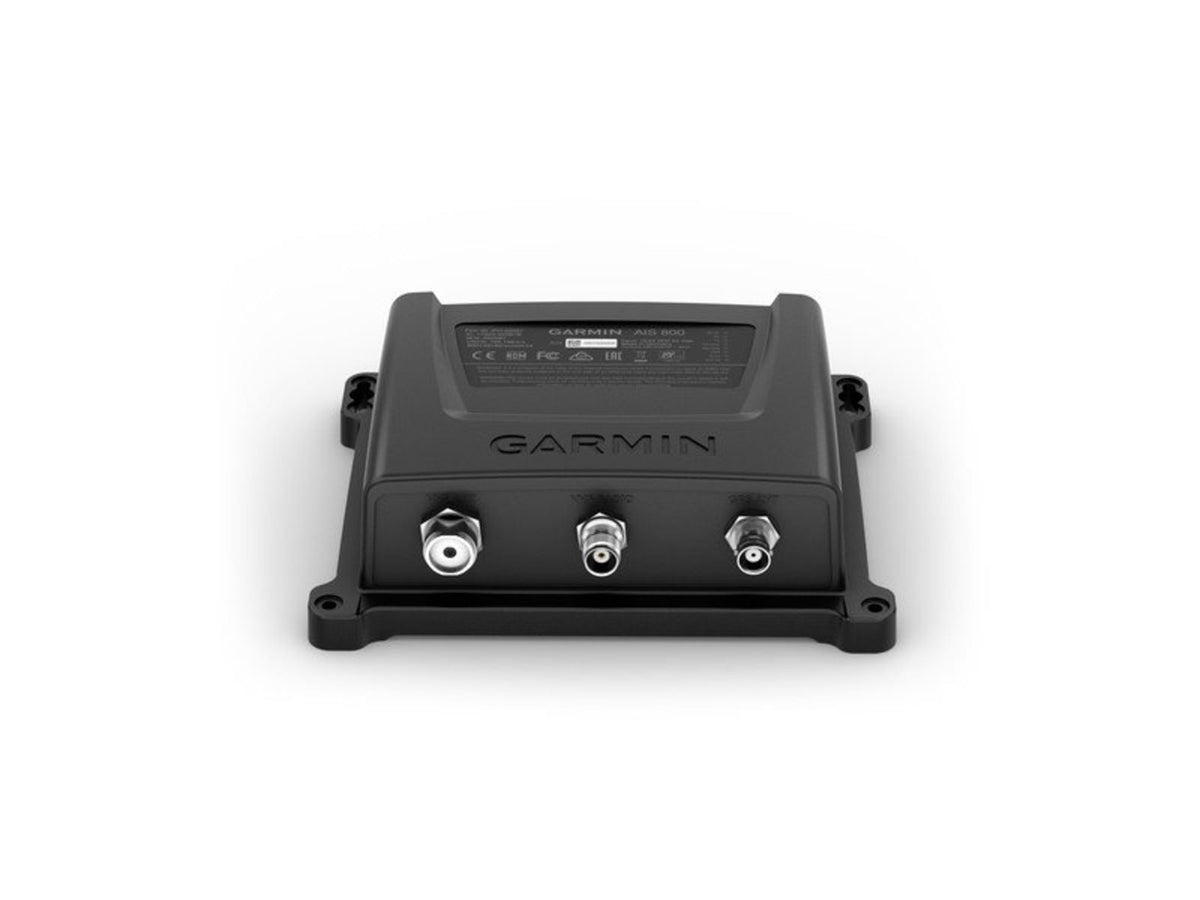

Garmin Accessory AIS 800 Blackbox Transceiver 010-02087-00
Estimated delivery between October 27 and October 29.
Help Avoid Running into Trouble on the Water
Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before
Built-in GPS with connector for optional external antenna
NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays
Internal VHF antenna splitter allows VHF and AIS to share a single antenna
Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver. It has 5 watts of transmit power and provides faster position reporting than ever before. It transmits your vessel information to other AIS receivers in your area while it receives their AIS target data. Garmin AIS 800 has an internal VHF antenna splitter, which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna) and integrates seamlessly into the Garmin onboard system. The transceiver features NMEA 2000/0183 connectivity for easy integration with compatible chartplotters and multifunction displays. And its all packed into an easy-to-install black box unit with a small footprint.
Specifications for Garmin AIS 800 Blackbox Transceiver:
| Manufacturer: | Garmin |
| Color: | Black |
| Weight: | 0.9 lb |
Features of Garmin AIS 800 Blackbox Transceiver
- Dimensions: 17.5 x 14.2 x 5.5 cm
- Weight: 0.9 lbs (414 g)
- Operating Temperature Range: 5F to 131F (-15C to 55C)
- Waterproof Rating: IPX7
- Compass safe distance: 15.8 (40 cm)
- Operating Voltage: 9.6 - 31.2 Vdc
- Current Drain: 12Vdc
- Antenna Connector: S0-239 (50 )
- GPS refresh rate: 1 Hz
- Max Antenna Gain: 9 dB
- Transmitter Power: 5 W
- NMEA 2000 LEN: 2
- NMEA 0183: Yes
Package Contents:
- Garmin AIS 800 Blackbox Transceiver
- AIS 800
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- VHF antenna extension (1.2 meters)
- USB adapter cable
- Power cable
- Mounting hardware
- Documentation
