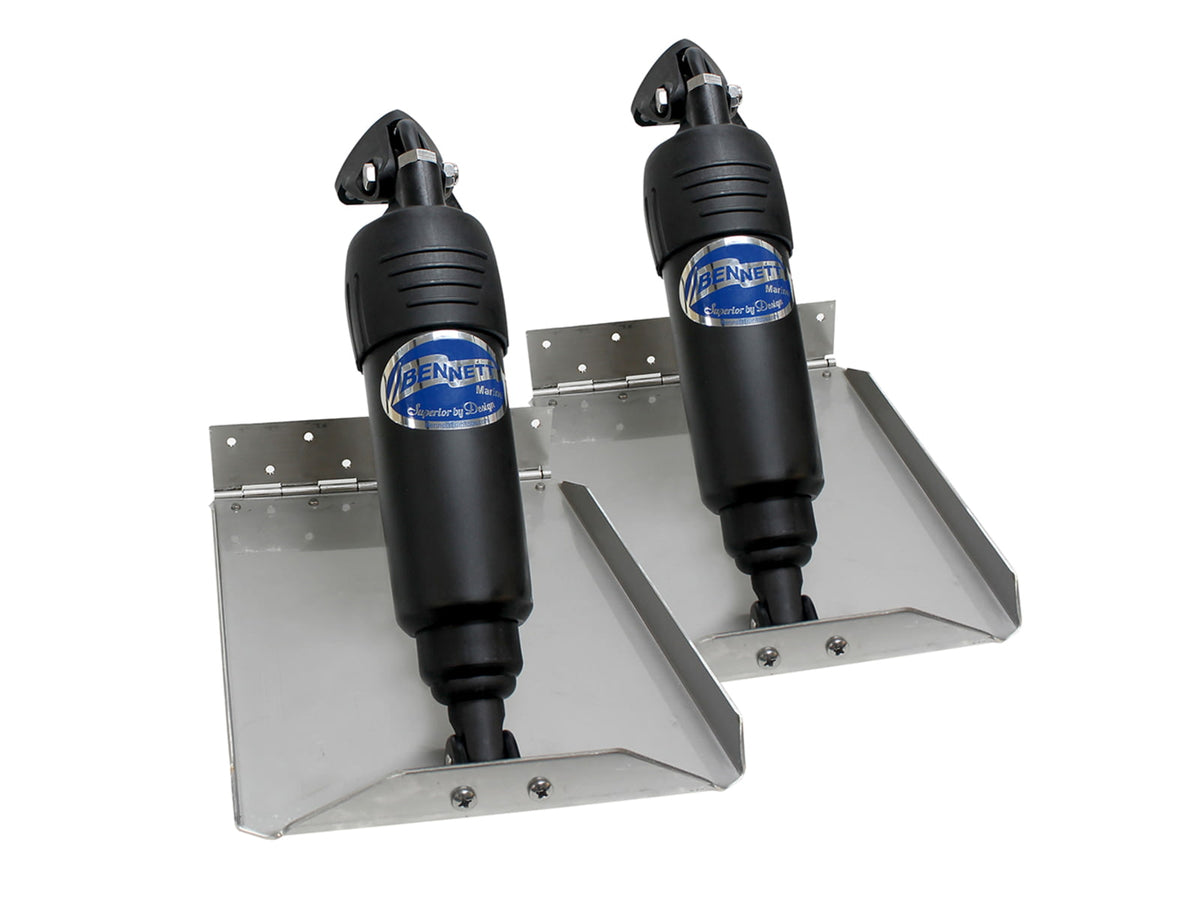

Bennett Trim Tabs 912ED Electric - Edge Mount Limited Space Trim Tab Kits - 12V BOLT912ED

Balance loads, plane faster, increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. BOLT is built to outlast any electric trim tab system on the market. Includes (2) stainless steel trim planes (tabs) and mounting plates, (2) 20' harness with waterproof connectors (BAW2020), and (2) 12-volt actuators with 6' wire harness and waterproof connectors (BEA3000). Vertical Transom Space Required: 6.39". Stroke: 2.5". Length: 13.25". Voltage: 12V/ Connectors: Deutch, DT Series, 13A. Working Forces (Actuation and Return): 750 lbs. Current Draw: 10A (250 lbs.), 30A (750 lbs.)

Specifications for Bennett Trim Tabs 912ED Electric:

Features of Bennett Trim Tabs 912ED Electric

• BOLT Electric ' Edge Mount Limited Space Trim Tab Kits with adjustable upper hinge actuators (BEA3000), Balance loads, plane faster, increase efficiency and performance with Bennett bolt electric trim tab systems built to outlast any electric trim tab system on the market, Lifetime warranty for electric actuators; Water-tight design provides trouble-free operation for years, Includes (2) stainless steel trim planes (tabs) and mounting plates, (2) 20' harness with waterproof connectors (BAW2020), and (2) 12-volt actuators with 6' wire harness and waterproof connectors (BEA3000), 9" x 12"trim tabs

Package Contents:

• Bennett Trim Tabs 912ED Electric
