Furuno

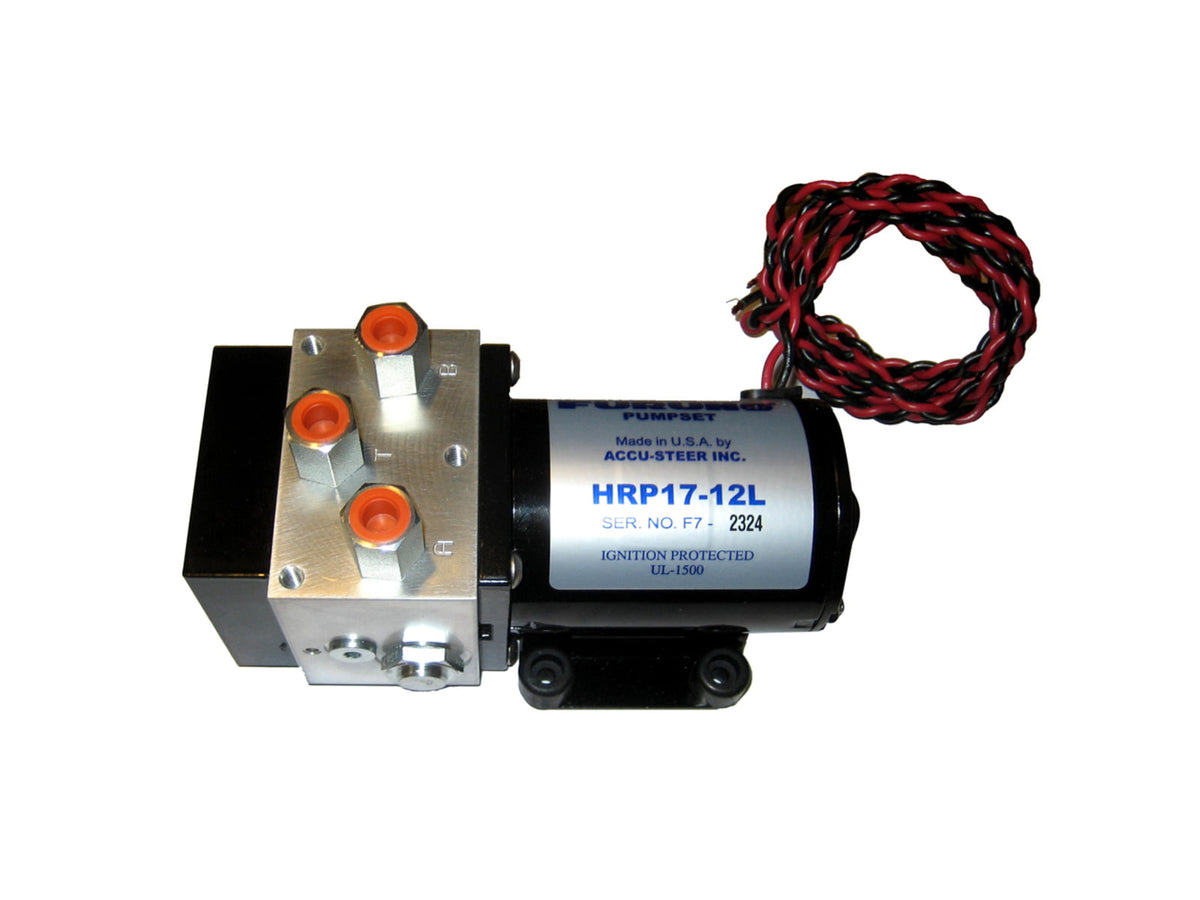

Furuno Pump Autopilot PUMPHRP17-12
Estimated delivery between October 26 and October 28.
Autopilot Pump 12 VDC 1.7 Cubic Inches Per Second (For Ram Sizes of 14 Cubic Inches to 25 Cubic Inches in Volume)
The PUMPHRP17-12 is a reversing pumpset designed to interface the NavPilot series autopilot with a hydraulic steering system. The pump assembly incorporates a reversible gerotor gear pump a two-piece gear housed in an eccentric ring. This allows for incredibly quiet reliable and precise operation.
A hydraulic steering system consists of a hydraulic actuator and one or more steering wheel pumps or helm pumps. As the steering wheel (helm pump) is turned in the port direction hydraulic oil is pumped into the port hydraulic steering line. This oil is directed into the port side of the steering cylinder. As the cylinder moves to port oil from the starboard side of the cylinder returns to the helm pump through the starboard hydraulic lines.
One end of the cylinder is fixed and the other is connected to a tiller arm which is connected to a rudder shaft. With this connection to the tiller arm the linear movement of the cylinder to port is changed to rotary movement which turns the rudder and steers the vessel to port. Moving the steering wheel to starboard produces the same reaction with oil being pumped out of the starboard line and returning through the port line.
If more than one helm pump is used a return/fill line must be installed to connect the cases of all helm pumps together.
The output flow rate of the pumpset determines the speed of the steering cylinder. The PUMPHRP17-12 outputs 1.6 cu. in. of oil per second and requires a 12VDC input.
Specifications for Furuno Autopilot Pump:
| Manufacturer: | Furuno |
| Color: | Black |
Package Contents:
- Furuno Autopilot Pump
