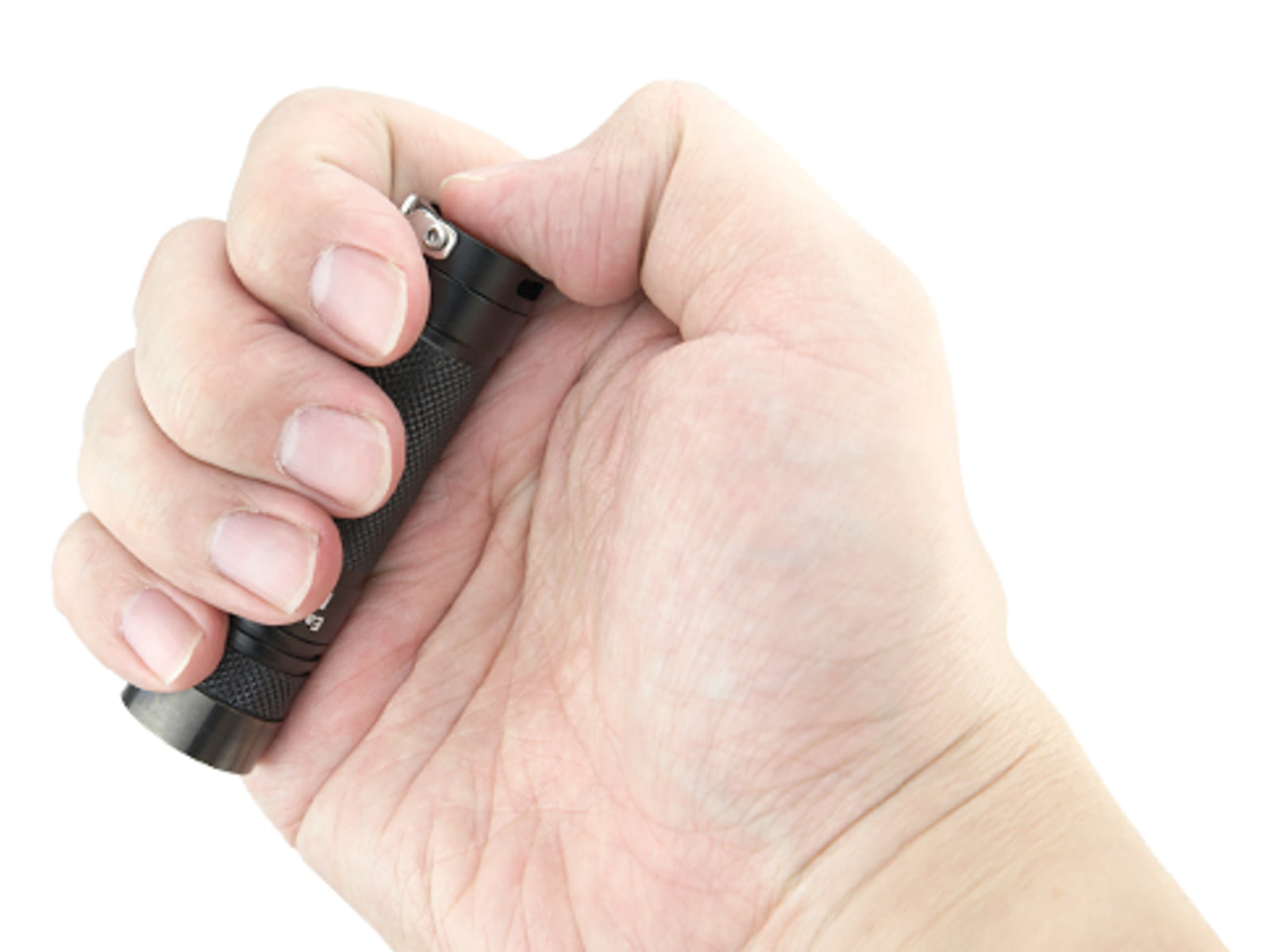

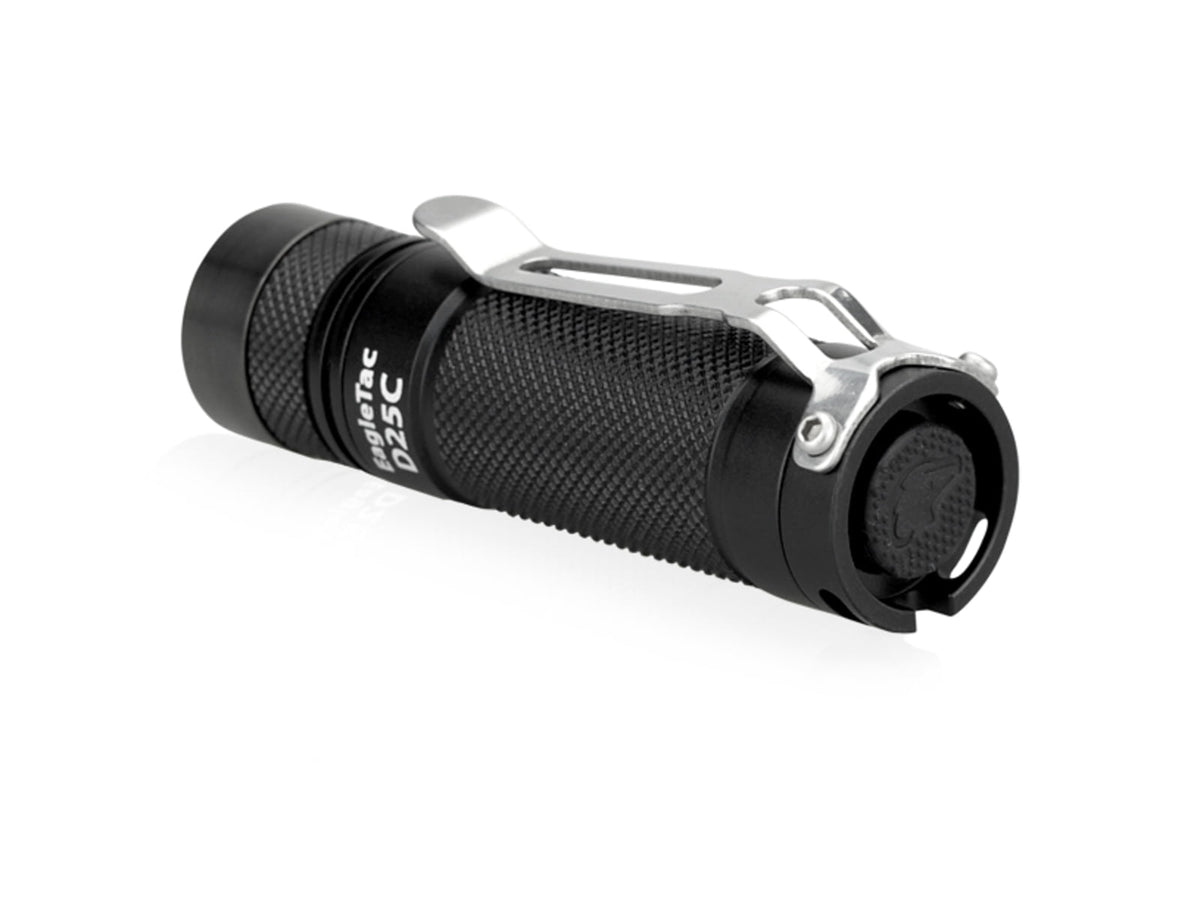

EAGTAC D25C RC Clicky Flashlight

EAGTAC D25C RC Clicky Flashlight XM-L2 NW U2 LED 449lm1xCR123A1x16340 Black D25C-CLICKY-XML2-NW. High output that you can count on This circuit survives the toughest torture environment including: 1) repeatedly over-night burn-in test 2) over input voltage test 3) over-driven output current test and 4) high temperature oven test. We designed this circuit to offer extreme output performance while maintaining reasonable amount of headroom. Thus making this flashlight one of the top performer with a rock stable circuit design. A950RC circuit We use current regulation method to control the amount of current going through the LED for all output levels. This results in constant brightness output regardless of battery type LED model and temperature/voltage change . This circuit utilizes low restrictive passive components and top-notched ICs/FETs to ensure ultra-high efficiency and low drop-out voltage. D25C runs for 150+ hours on its lowest brightness level. The current regulated circuit design allows constant output throughout its runtime for all output levels without PWM-flicking. At highest brightness level D25C current regulates for 0.9 hours using a single CR123A battery. The current regulation control method allows the just right of amount of current going through the LED. This results in constant brightness output regardless of battery type LED variation and temperature change. One of the most powerful single AA cell flashlight available Maximum lumen output LED lumen XM-L2 U4: 5191/339/38/1 XP-L HI V3: 4501/293/31/1 XP-G2 S3: 4371/287/40/1 Nichia 219 (CRI-92): 3001/287/40/1 ANSI FL-12 lumen XM-L2 U4: 3631/240/28/0.5 XP-L HI V3: 3301/223/28/0.5 XP-G2 S3: 2911/192/27/0.5 Nichia 219 (CRI-92): 2001/129/16/0.5 Turbo boost technology 1) Turbo boost technology is activated every time you turn on at turbo output setting. It offers 20percent more power to the LED for the first 200 seconds at turbo mode. 2) ANSI FL-1 is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTAC ANSI FL-1 Lumen output is measured using a calibrated integrated sphere three minute after turning on the flashlight. Top binned LED Cool White LED CREE XM-L2 U4 LED CREE XP-L HI V3 LED CREE XP-G2 S3 LED Neutral White LED CREE XM-L2 U2 LED CREE XP-L HI V2 LED Nichia 219B SW45 D220 LED Color tint selection Cool White LED This gives you the maximum brightness output in its class and maximum beam distance. Neutral White LED If you need awesome beam output out in the woods or areas with a lot of green vegetation use our neutral white LED as it offers higher CRI (Color rendering index). Neutral white LED renders color like the sun in the afternoon. Neutral white LED is approximately 7percent dimmer than our top binned cool white LED but it's well worth the ability to see the real color of your surrounding.This gives you better color rendition and more accurate color relative to cool white LED. CREE XP-G2 S3 LED 291 ANSI lumen Good far projecting performance excellent beam profile XP-G2 is the best well-balance LED for this flashlight in terms of beam profile output far projecting and up close beam performance. Offers up to 550 LED lumen when direct drive with 16340 li-ion battery. XP-L HI is the best well-balance LED for this flashlight in terms of beam profile output far projecting and up close beam performance. Offers up to 550 LED lumen when direct drive with 14500 li-ion battery. CREE XM-L2 U4 LED 162 ANSI lumen Fair far projecting performance excellent (relatively floody) beam profile Offers up to 803 LED lumen when direct drive with 14500 li-ion battery. (Cool white LED beam profile shown above) Neutral white LED shares the same beam profile as its cool white version. Nichia 219B SW45 D220 LED Nichia 219 is currently the only one in the market that offers high 92 CRI in neutral white tint of 4500K. The 219 LED offers very nice smooth beam and gives you the best illuminated object color. We use the highest flux D220 for maximum output. Self intuitive easy-to-use nothing to memorize. Clicky on/off switch & Twisty head Easy on/off operation Press the switch button until it clicks to turn on the flashlight. To switch off the light press the switch again until it clicks. Output adjustable Half press the switch button to switch to next output level. With the head loose AUX hidden modes are available after you repeat two sets of regular low-med-high output. Loose the head for group one output and tighten the head for group two output. Programmable settings Moonlight output (disable by default) - disable or enable the moonlight output. The entire output range of the group 1 output will be shifted to a brighter output set or a dimmer output set accordingly. Toggle this setting starting with head loosen turn on the light and then repeat tight and loose for three times. Turbo boost technology This is activated every time you turn
