Sportac Dropin 1L SF Dropin

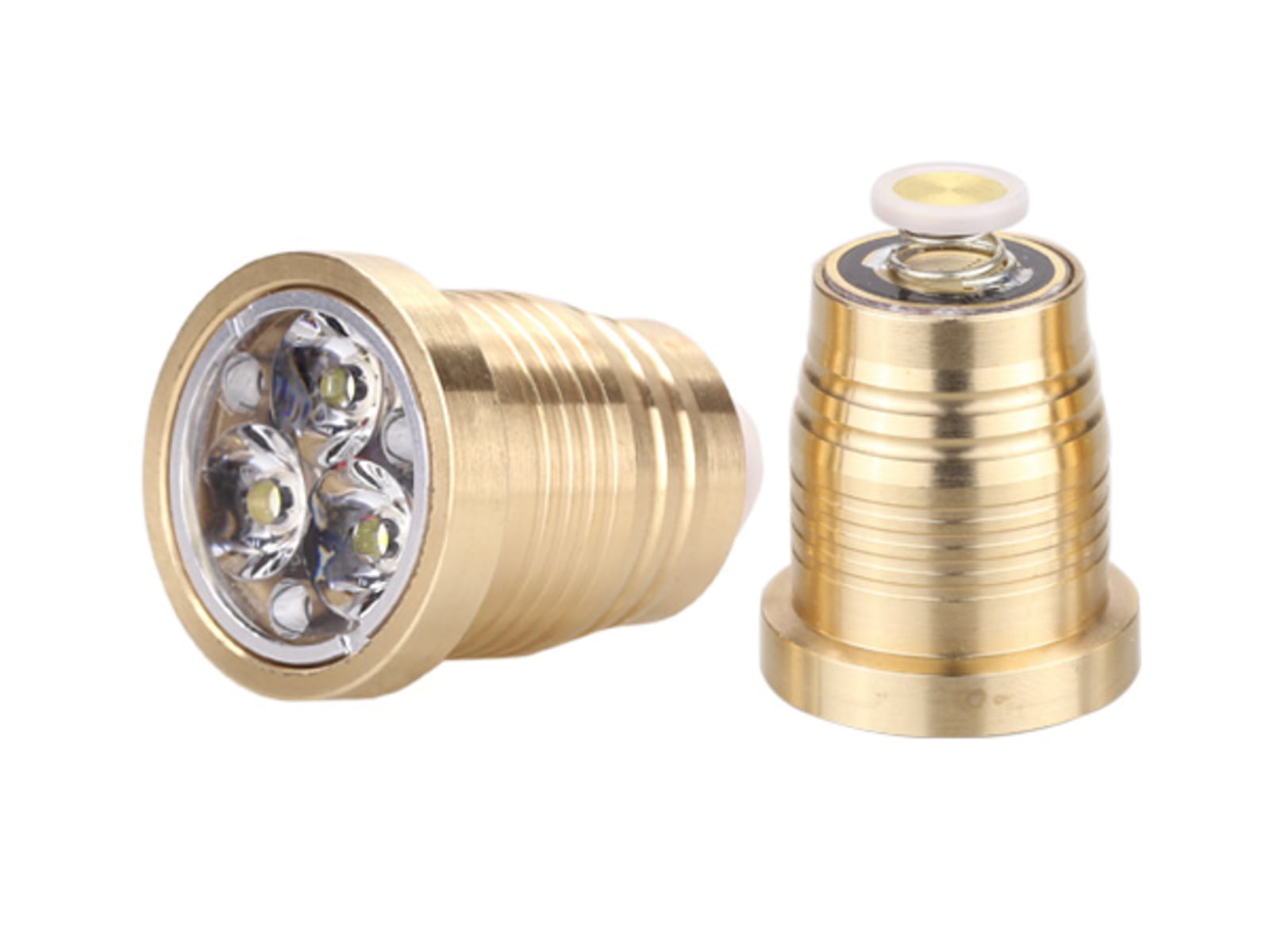

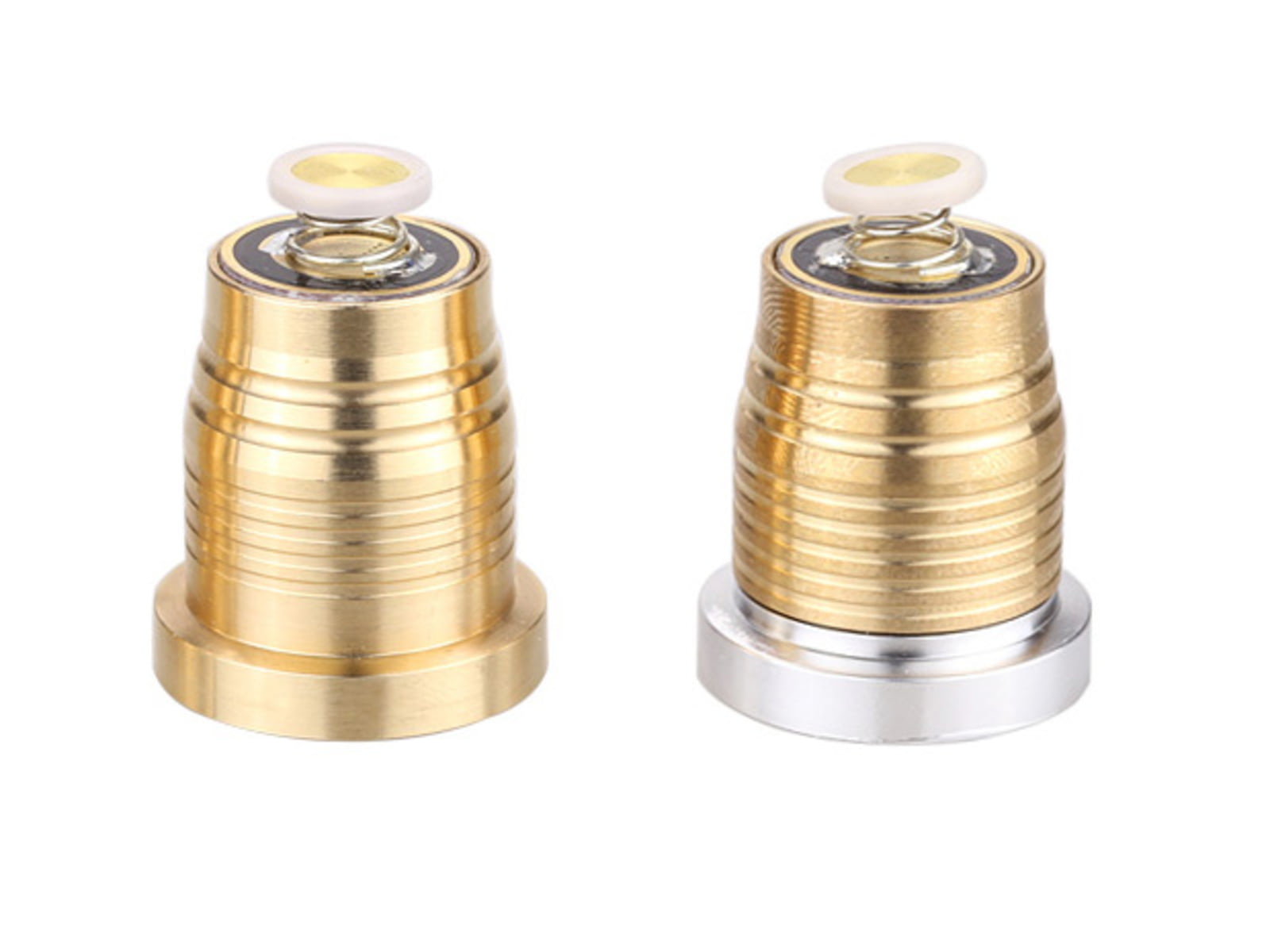

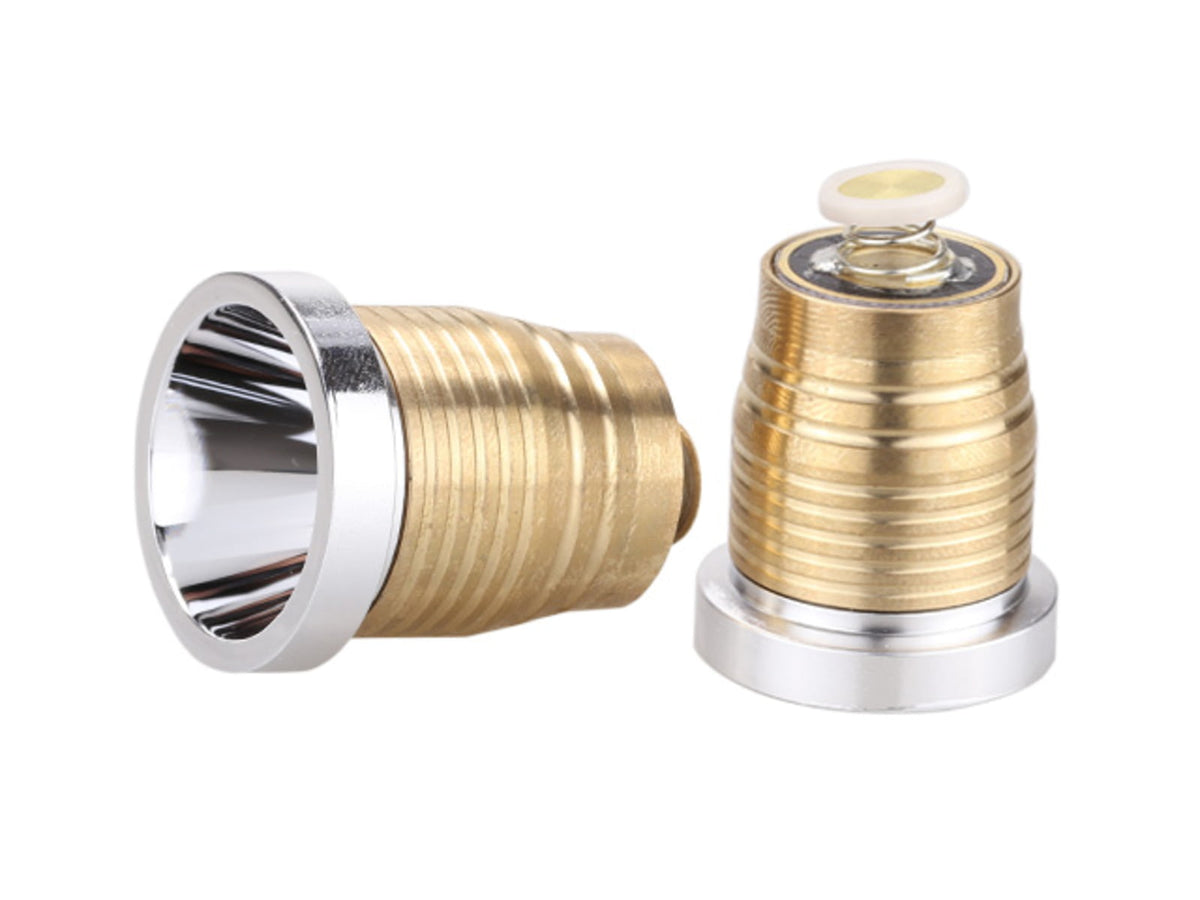

Sportac Dropin 1L SF Dropin 3 XP-G2 S2 CW LED 1224lm 3 XP-G2 S2 CW P60-SF-3XPG2-CW-1L. High performance P60 LED drop-ins (for SF) Sportac P60 dropin Different and superior than the rest of the P60 dropins. The Sportac P60 dropin uses all brass construction for maximum heatsink capability. The unique design allows the dropin to be directly in touch with the flashlight body for quick heat transfer thus allowing LED to be driven harder and running brighter. Featuring state-of-art C3000 LED driver and latest LED technology Sportac is simply the best P60 dropin ever made. C3000 LED driver Sportac P60 LED Dropin uses highly efficient synchronous buck current regulated circuit that controls the precious amount of current that goes through the LED. This results in constant brightness output regardless of LED variation battery voltage and temperature change. We utilize low RDS(on) high power external mosfets rugged & shielded power inductor low ESR tantalum capacitors and low resistance 2 oz copper PCB for maximum efficiency. This also lower required input voltage to current regulate the LED at maximum output when the battery voltage is near the LED forward voltage (i.e. longer regulated runtime with single li-ion battery). CREE XM-L2 U2 XP-G2 S2 XP-L V5 or Nichia 219 CRI-92 LED. We offer the highest and latest bin available LED for maximum brightness. XM-L2/XP-L gives more beam distance while the triple XP-G2 offers maximum lumen. The new Nichia 219 5000K neutral white LED boosts CRI to 92 for best color beam. We also offer XM-L2 Neutral white color in T6 brightness. What's special? Brass Heatsink Deep aluminum reflector design with smooth reflective coating Reversed polarity protection Built-in brass spring for recoil Wide input voltage Spacer ring to fit 18650 P60 flashlight body (optional) Available with cool white or netural white LEDs Single Led P60 Dropin for SF host Product pics std Optimized for far projecting beam. CREE XM-L2 U2 Cool White LED or XM-L2 T6 Neutral White LED. 1116/1038 LED lumen (XM-L2 U2 C.W./T6 N.W. LED) 890/828 ANSI FL-1 lumen (XM-L2 U2 C.W./T6 N.W. LED) Runtime: 0.7/1 hours (2xCR123A/3xCR123A) Voltage input: 2.7V - 9V Weight: 1.1o.z. (31gram) For 6P 9P 6Z C2 C3 M2 G3 G2 or other CR123A aluminum P60 body (an optional fitting ring is needed when used with shock absorbing head (ie. M2)) 13200 center lux at 1 meter beam distance 251 yards spot angle 10 with spill angle 73(C.W.) Installation: Remove batteries and flashlight head then replace the P60 module inside. Attach the flashlight head and ensure it's tighten snugly for proper contact. Disclaimer: SureFire LLC is not associated in any way with SPORTAC. All other trademarks not owned by SPORTAC are the property of their respective owners. Triple LED P60 Dropin for SF Host Beam Shot & Product pics std For maximum lumen output. Floody beam. High CRI-92. 3xCREE XP-G2 S2 Cool White LED or 3xNichia 219 CRI-92 5000K LED. 1224/900 LED lumen (3XP-G2 S2/3Nichia 219 CRI92 LED) 925/676 ANSI FL-1 lumen (3XP-G2 S2/3Nichia 219 CRI92 LED) Runtime: 0.8/1.1 hours (2xCR123A/3xCR123A) Voltage input: 2.7V - 9V Weight: 1.3o.z. (36g) For 6P 9P 6Z C2 C3 M2 G3 G2 or other CR123A aluminum P60 body (an optional fitting ring is needed when used with shock absorbing head (ie. M2)) 4200 center lux at 1 meter beam distance 141 yards spot angle 18 with spill angle 90(3XP-G2) 2100 center lux at 1 meter beam distance 100 yards spot angle 18 with spill angle 90(3Nichia 219) Installation: Remove batteries and flashlight head then replace the P60 module inside. Attach the flashlight head and ensure it's tighten snugly for proper contact. Disclaimer: SureFire LLC is not associated in any way with SPORTAC. All other trademarks not owned by SPORTAC are the property of their respective owners. Included Accessories: Single Mode Specifications for Sportac P60 LED Drop-In Module for SF Host Flashslights: Manufacturer: Sportac Finish: Hard Anodized Condition: New Features of Sportac P60 LED Drop-In Module for SF Host Flashslights Brass Heatsink Deep aluminum reflector design with smooth reflective coating Reversed polarity protection Built-in brass spring for recoil Wide input voltage Spacer ring to fit 18650 P60 flashlight body (optional) Package Contents: Sportac P60 LED Drop-In Module for SF Host Flashslights Sportac P60-SF-3XPG2-CW-1L: Dropin 1L SF Dropin 3 XP-G2 S2 CW LED 1224lm 3 XP-G2 S2 CW
